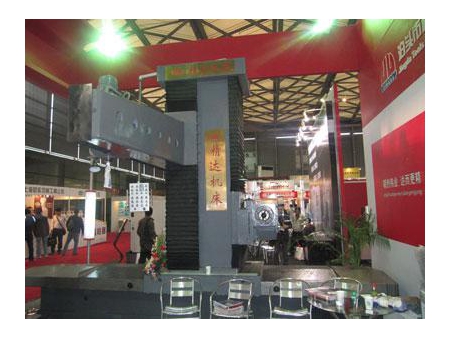

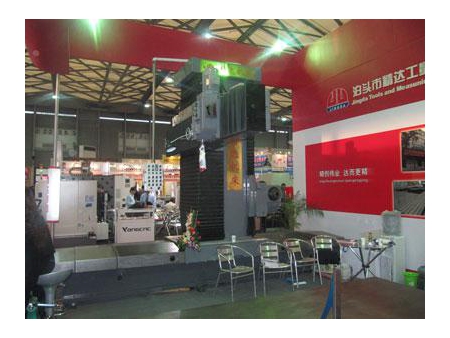

Multifunction Face Milling Machine
Request a Quote
- The multifunction face milling machine is secure in structure, and has good rigidity, flexibility.
- Our large size milling equipment is used to the groove type milling for the large or ultra large workpiece.
- This machine tool also can be used to the drilling and tapping of the large or ultra large workpiece.
- Its processing height can be freely adjusted according to the size of the workpiece.
| Product Name | New Type Multifunction Face Milling Machine | |||||
| Model | mm | DX30-15W | DX40-15W | DX60-20W | DX80-25W | |
| Machine Tool Body | mm | 5000×1060×480 | 6000×1060×500 | 9000×1500×650 | 11000×1500×650 | |
| Column Size | mm | 2800×1000×800 | 2800×1000×800 | 3800×1400×1000 | 4400×1500×1050 | |
| Longitudinal Travel | mm | 3100 | 4100 | 6100 | 8100 | |
| Cross Travel of Cross Beam | mm | 1500 | 1500 | 2000 | 2000 | |
| Lifting Travel of Cross Beam | mm | 1500 | 1500 | 2000 | 2500 | |
| Cross Travel of Face Cutter | mm | 250 | 250 | 250 | 280 | |
| Lifting Travel of End Face | mm | 1500 | 1500 | 2000 | 2500 | |
| Power of the Cross Beam Cutter Head | Kw | 4 | 4 | 5.5 | 5.5 | |
| Power of the End Face Cutting Head | Kw | 5.5 | 5.5 | 7.5 | 7.5 | |
| Number of Revolutions of the Milling Head | rpm | 88-628 | 72-508 | 75-420 | ||
| Maximum Recommended Cutter Diameter | φ | 200 | 200 | 250 | 250 | |
| Rotation Angle of Cantilever Vertical Milling Head | 。 | ±30° | ||||
| Total Power | Kw | 22.17 | 22.17 | 25.57 | 25.75 | |
| Dimensions(L×W×H) | mm | 7000×3850×2950 | 8400×3850×2950 | 11500×5050×4000 | 13600×5650×4200 | |
| Weight | T | 14.5 | 17.2 | 35.4 | 38.6 | |
