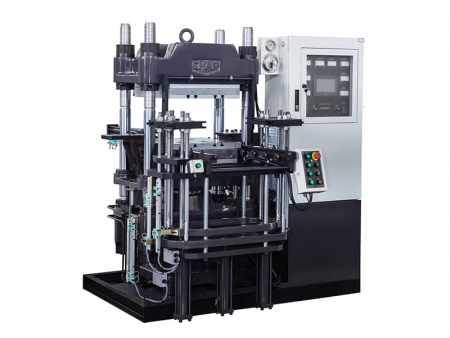

C-XLB-D1000X1200 6000KN Double Layer Plate Vulcanizing Rubber Machine and Rubber Press

C-XLB-D1000X1200 6000KN Double Layer Plate Vulcanizing Rubber Machine and Rubber Press
C-XLB-D1000X1200 6000KN Double Layer Plate Vulcanizing Rubber Machine and Rubber Press
C-XLB-D1000X1200 6000KN Double Layer Plate Vulcanizing Rubber Machine and Rubber Press
C-XLB-D1000X1200 6000KN Double Layer Plate Vulcanizing Rubber Machine and Rubber Press
Request a Quote

Product introduction
C-XLB-D1000×1200/6000 Double layer plate rubber vulcanization machine heating plate is 1000×1200m and clamping force is 6000 KN.

Applications
Reliable and efficient, CHAP plate rubber vulcanizing machine is extensively used for compression moulding of thermoset plastics, foam, resin, bakelite, thin metal and building materials.

Technical Specifications of Plate Rubber Vulcanizing Machine

C-XLB-D1000×1200/6000
Clamping force 6000 KN
Clamping stroke 450 mm
Rapid clamping speed ≥50 mm/s
Heating plate size 1000mm×1200mm
Heating plate spacing 300~500 mm
Max operating temperature of heating plate 250 ℃
Number of working layer 1 layers
Spacing /
Max ejector force 120 KN
Motor power (7.5+4) KW
Heating power 52 KW
External dimension (LxWxH) 2700mm×4100mm×3110mm
Oil tank capacity 500 L

CHAP is an ISO9001 certified plate rubber vulcanizing machine manufacturer in China. Our primary products include vacuum rubber vulcanizing machine, C-Frame Transfer type molding machine, thermoset plastic transfer molding machine, and custom rubber machine. Our products are EC and CQC certified, and they are well accepted by customers from Europe, South America, Southeast Asia, East Asia, Middle East, and other regions. In addition, our location in Ningbo City, provides us with easy access to convenient transportation, which reduces our transportation cost, enabling us to offer quality products at economical prices. If you are in need of our products, please contact us. Our staff is ready and waiting to serve you.
