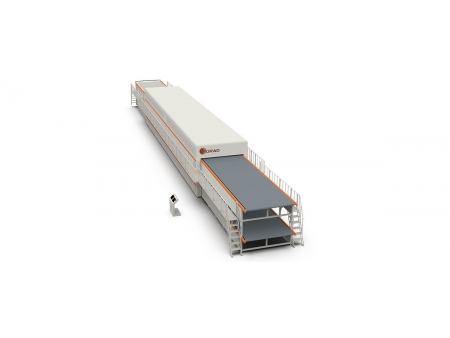

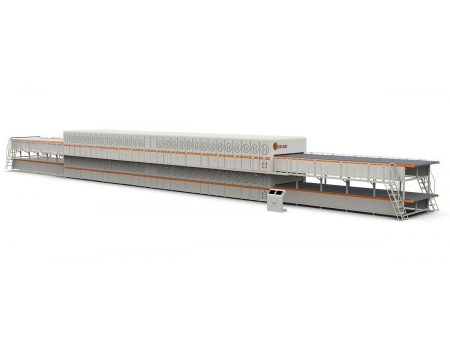

Double Layer & Double Chamber Laminator

Double Layer & Double Chamber Laminator
Double Layer & Double Chamber Laminator
Double Layer & Double Chamber Laminator
Request a Quote

Solar panel laminator

Technical Parameters
Item Parameters
Effective lamination area 2,700*8,700mm
Capacity 250-300MW/year
Utilization rate ≥99.5%
Maximum vacuum degree 30Pa
Operating temperature -180℃ room temperature
Precision of temperature control ±1.5℃
Temperature accuracy ±1℃
Heating method Oil/electric heating
Cooling method Fan cooling
Compressed air pressure 0.6-0.8MPa
Overall dimensions 38,000*3,650*3,600mm
Features
  • Smaller footprint and higher throughput;
  • Movable touch screen for easy operation;
  • Adopting the double-layer and double-chamber structure. Each layer and chamber can be independently controlled;
  • Strong compatibility of being suitable for a variety of solar module production;
  • Other dimensions are also customizable as customers request.
