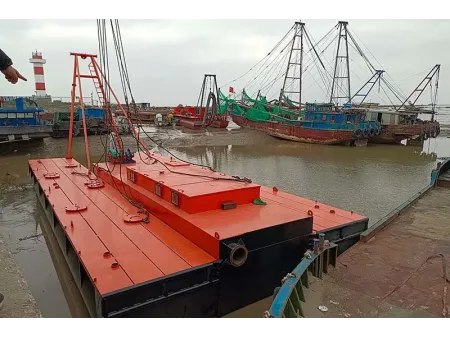

Jet Suction Dredger
Dredging Vessels
Ideal for dredging and sand extraction in rivers, artificial lakes, reservoirs and ports
- Dredging depth: up to 18 meters
Our Jet Suction Dredger is the perfect solution for your sand extraction needs. It uses a high-pressure water pump to generate powerful jets that break up the sediment at the bottom.
Once the sediment is loosened, the sand pump creates strong suction to draw up the slurry mixture of sand and water, which is then transported through a suction pipe to the vessel’s hold or directly discharged to your desired location.
Contact us today to discover how our Jet Suction Dredger can help you efficiently complete your sand extraction project!
The Jet Suction Dredger is widely used for dredging and sand extraction in areas with fewer rocks, such as ports, artificial lakes, reservoirs, rivers, and river dams. Thanks to its innovative design, ease of operation, and high efficiency, the Jet Suction Dredger plays a key role in river, lake, and sea dredging, as well as in reservoir sand extraction, reclamation projects, and port dredging.
- Caspian Sea Dredging in Kazakhstan
- Offshore Channel Widening
- Inland River Dredging
| Model | ||||||
| Length overall | 11.0m | 13m | 15m | 20m | 25m | 30m |
| Max. capacity | 100m³/h | 160m³/h | 240m³/h | 440m³/h | 700m³/h | 1000m³/h |
| Engine power | 55kW | 75kW | 120kW | 456kW | 582kW | 895kW |
| Sand suction pump | 8'/6' | 10'/8' | 12'/10' | 16'/14' | 20'/18' | 28'/24' |
| Jet pump power | 22kW | 37kW | 55kW | 75kW | 110kW | 185kW |
| Dredging depth | 9m | 11m | 13m | 16m | 17m | 18m |
| Water flow | 500m³/h | 800m³/h | 1200m³/h | 2200m³/h | 3500m³/h | 5000m³/h |
| Hull draft | 0.6m | 0.7m | 0.7m | 0.8m | 1.2m | 1.5m |
- Simple Structure: Primarily made up of core components such as high-pressure water pumps and sand pumps, the design is straightforward and cost-effective to manufacture.
- Ease of Operation: The operation is user-friendly, with the operator simply controlling the high-pressure water pump and sand pump, along with the positioning and movement of the vessel.
- Strong Adaptability: Suitable for various water environments, including rivers, lakes, and reservoirs, with high sand extraction efficiency in areas with softer sand layers.
- High Sand Extraction Efficiency: Under optimal conditions, it allows for continuous sand extraction operations, with a capacity of 100-1,000 tons per hour.
Brands: Datang, Kingda, Boxin, Shijiazhuang Industrial Pump Factory (SNG)
Brands: Cummins, Mitsubishi, Weichai
Removable cutter teeth made from high chromium alloy, offering excellent wear resistance.
Brands: Rexroth, Vickers, Yuken
Brand: Siemens
- This dredger is currently in use at a port in Nigeria, where it supports dredging operations with a dredging depth of 20 meters, a flow rate of 2,200 m³/h, and a discharge distance of 1,500 meters. It is especially effective in areas with low gravel content and shallow mud layers, ensuring smooth navigation and operational efficiency.
- This dredger, used at a dock in Egypt, has a dredging depth of 25 meters, a flow rate of 3,000 m³/h, and a discharge distance of 2,000 meters. It is powered by a Mitsubishi engine and is currently supporting the dredging of the dock to maintain safe and efficient operations.
- This dredger, used in a river dredging project in China, has a dredging depth of 12 meters, a flow rate of 3,500 m³/h, and a discharge distance of 1,500 meters. Powered by a Weichai engine, it is effectively removing sediment to maintain safe water levels and improve navigation.
