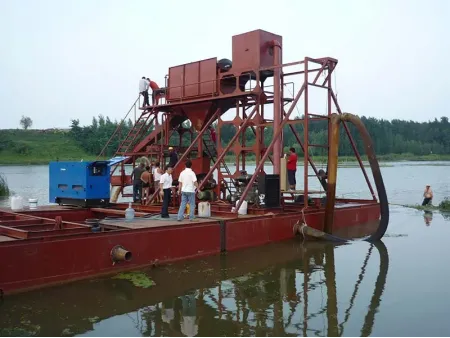

Jet Suction Mining Dredger
DREDGE MINING EQUIPMENT
Suitable for mining underwater minerals in rivers, lakes and seas
- Dredging depth: up to 20 meters
The jet suction mining dredger is designed for efficient underwater mineral collection, offering you both mining and processing capabilities. It works by generating high-pressure water flow using a pump, which is then directed through a nozzle to break up the mineral layers on the seabed. This creates a slurry, mixing the minerals with surrounding mud and impurities. The sand pump then generates suction to lift the slurry and transport it through pipes directly to the ship.

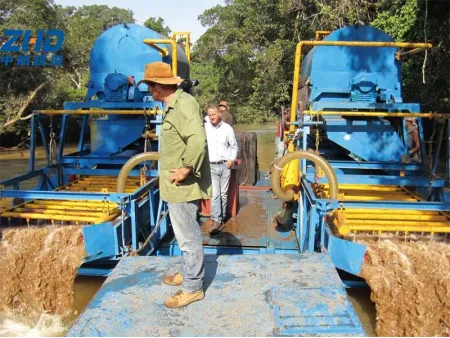

Onboard, the dredger is equipped with advanced screening, gravity separation, flotation, and magnetic separation equipment to effectively process and refine the slurry. This ensures you get high quality minerals with maximum efficiency.
Contact us today to explore how our dredgers can enhance your mining projects. We're here to assist you in finding the best solution tailored to your needs!
Jet suction mining dredgers are widely used for extracting gold, tin, titanium, zircon sand, and other placer mineral resources. They are commonly employed in mineral extraction projects in rivers, lakes, and coastal waters. Additionally, these dredgers are effective for initial exploration and small-scale mining of shallow seabed mineral resources.
- Mali Dual-Pump Gold Mining Dredger
- Central Africa Suction Dredger for Gold Mining
- Guinea Suction Dredger for Gold Mining
| Model | |||
| Max. capacity | 300m³/h | 200m³/h | 100m³/h |
| Slurry concentration | 30% | 30% | 30% |
| Length overall (ladder raised) | 24m | 20m | 16m |
| Breadth | 8m | 7m | 6m |
| Height | 1.2m | 1.0m | 0.8m |
| Dredging depth | 20m | 15m | 10m |
| Total power | 250kW | 200kW | 150kW |
| Recovery of minerals | 90% | 90% | 90% |
- Efficient Mining: By combining water jetting and suction functions, it can quickly break up and extract underwater sediment and minerals, significantly improving mining efficiency.
- Strong Adaptability: The parameters such as water jet pressure and suction power can be adjusted based on varying operational conditions, including water depth, sand texture, and mineral content.
- Excellent Ore Processing: Equipped with suitable ore processing workflows and techniques, it allows for simultaneous mining and ore beneficiation, effectively enhancing mineral recovery rates.
Brands: Datang, KINGDA, BOXIN, SNG
Brands: Cummins, Mitsubishi, Weichai
trommel screen, vibrating sluice box and stationary sluice box
