Refrigerated Air Dryer with Integrated Filtration - TRQ Series
Refrigeration dryers with flow capacities ranging from 1.6 to 13 m³/min, designed for efficient moisture and contaminant removal from compressed air systems, featuring an integrated filtration solution for simplified installation and enhanced performance.
- Ambient temperature: 0~42℃
- Compressed air inlet temperature: 15~65℃
- Compressed air pressure: 0.7MPa, Max.1.6MPa (or customizable)
- Pressure drop: ≤0.028MPa (at 0.7MPa inlet pressure)
- Pressure dew point: 3℃ (35℃ inlet temperature, 25℃ ambient temperature)
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Evaporator type | Compatible air filter model | Air filter grade | Cooling method | Refrigerant | Dew point | Total weight (kg) | Dimensions (L×W×H) |

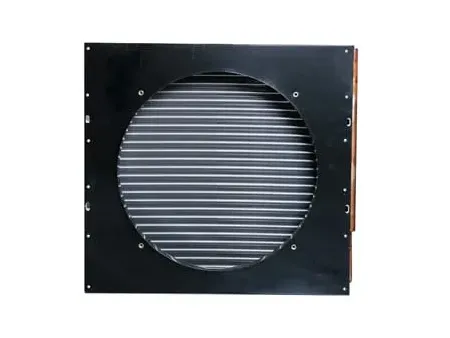

| | 1.6 | 220V/50Hz | 0.35 | RC3/4" | Aluminum plate heat exchanger | TRF-01 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R134a | 2~10℃ | 82 | 800×460×850 |
| | 2.4 | 220V/50Hz | 0.53 | RC3/4" | Aluminum plate heat exchanger | TRF-02 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R134a | 2~10℃ | 90 | 900×560×885 |
| | 3.6 | 220V/50Hz | 0.765 | RC1" | Aluminum plate heat exchanger | TRF-03 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 98 | 950×610×885 |
| | 6.5 | 220V/50Hz | 1.279 | RC1-1/2" | Aluminum plate heat exchanger | TRF-06 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 110 | 1150×660×1005 |
| | 8.5 | 220V/50Hz | 1.619 | RC2" | Aluminum plate heat exchanger | TRF-08 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 122 | 1200×660×1200 |
| | 10.5 | 220V/50Hz | 1.969 | RC2" | Aluminum plate heat exchanger | TRF-10 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 138 | 1200×660×1200 |
| | 13 | 220V/50Hz | 2.5 | RC2" | Aluminum plate heat exchanger | TRF-12 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 154 | 1200×660×1200 |

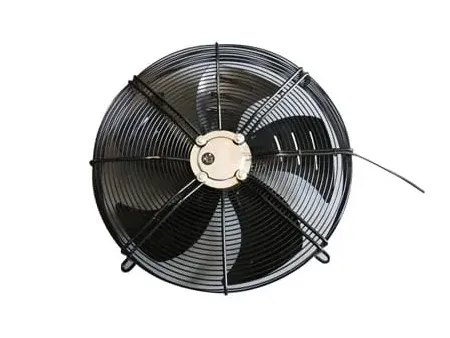

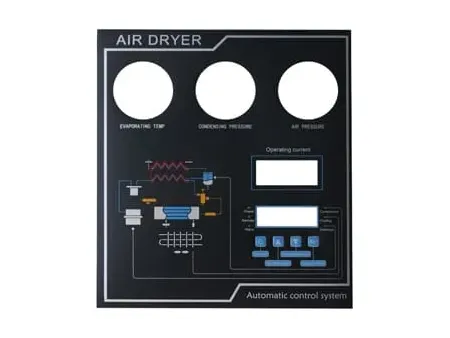

- Display Interface: LED dew point temperature display, LED alarm code display, operating status indication
- Anti-Freezing Protection: Constant pressure expansion valve

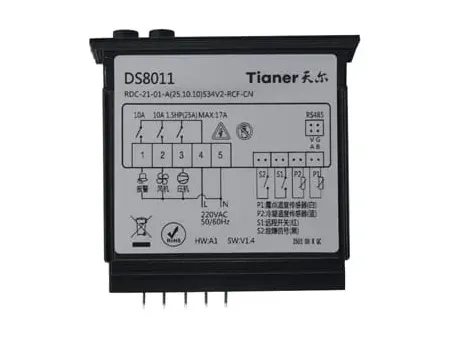

- Temperature Control: Automatic control of condensing temperature and dew point temperature
- High Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Low Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Remote Control: Optional configuration of DCS remote control dry contact, RS485 expansion interface (please let us know in advance if you need)
- Integrated skid-mounted design
Combines an environmentally friendly refrigerated air dryer with high-performance filtration in a compact, skid-mounted unit.

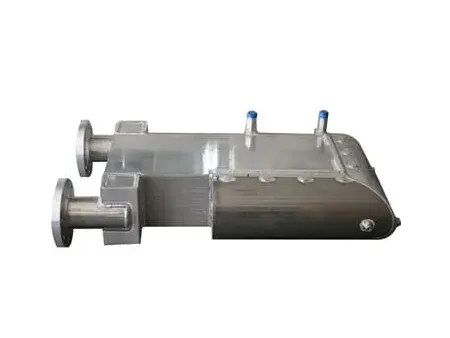

Features an aluminum alloy three-in-one plate heat exchanger, eco-friendly refrigerant, and microcomputer automatic control for intuitive operation.
The system provides direct dew point display along with self-diagnostic and protective functions, offering user-friendly operation without the need for complex piping, simply connect to an air compressor and begin use. - High-efficiency filter elements
Equipped with custom-engineered, high-efficiency filter cartridges made from imported filtration materials.
The expanded effective filtration area ensures superior oil and particulate removal, along with an extended service life. - High-performance design
Engineered to deliver clean, oil-free, moisture-free, and particle-free compressed air, ideal for demanding applications such as laser cutting and other precision industrial processes.
