Air-Cooled Refrigerated Air Dryer - TR Series (TR01-TR12)
The air-cooled refrigerated air dryer integrates plate heat exchanger technology with environmentally responsible design, ensuring both operational efficiency and eco-friendly performance. The system operates by using a refrigeration cycle in combination with a high-efficiency plate heat exchanger to cool compressed air below its dew point, causing moisture to condense and be effectively discharged, thereby delivering dry and clean air for industrial use.
- Ambient Temperature: 0~42℃
- Compressed Air Inlet Temperature: 15~65℃
- Compressed Air Pressure: 0.7MPa, Max.1.0MPa (or customizable)
- Pressure Drop: ≤0.02MPa (at 0.7MPa inlet pressure)
- Pressure Dew Point: 3℃ (35℃ inlet temperature, 25℃ ambient temperature)
The air-cooled refrigerated air dryers can be optionally equipped with IoT components, enabling remote monitoring of the dryer via smartphones or other connected display terminals. This allows users to access real-time performance data and manage operations efficiently and conveniently.
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) | Dimensions (L×W×H) (mm) |
| | 1.2 | 220V/50Hz | 0.35 | RC3/4' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 30 | 480×380×665 |
| | 2.4 | 220V/50Hz | 0.53 | RC3/4' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 39 | 520×410×725 |
| | 3.6 | 220V/50Hz | 0.765 | RC1' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 55 | 640×520×850 |
| | 6.5 | 220V/50Hz | 1.279 | RC1-1/2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 72 | 700×540×950 |
| | 8.5 | 220V/50Hz | 1.619 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 88 | 770×590×990 |
| | 10.5 | 220V/50Hz | 1.969 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 100 | 770×590×990 |
| | 13 | 220V/50Hz | 2.5 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 104 | 800×610×1030 |

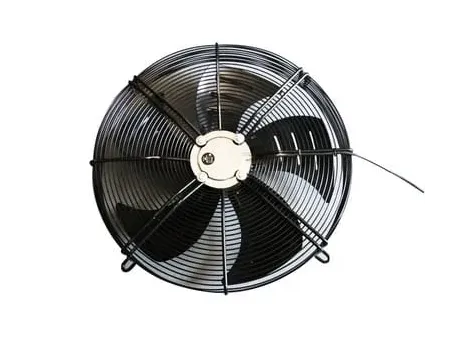

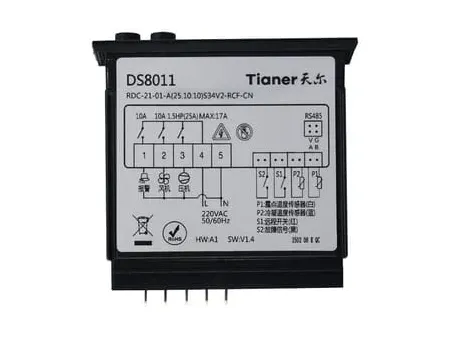

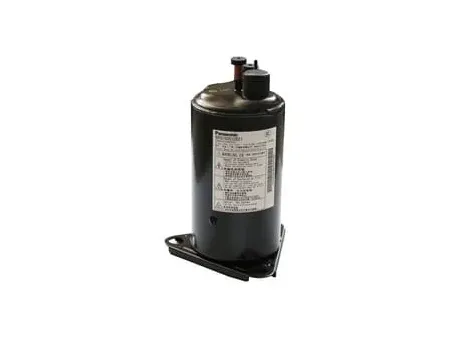

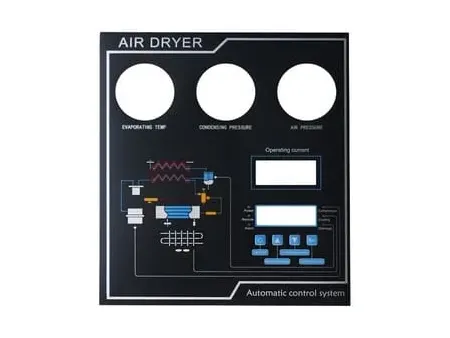

- Display Interface: LED dew point temperature display, LED alarm code display, running status indication
- Anti-Freezing Protection: Automatic temperature control/antifreeze solenoid valve
- Temperature Control: Automatic control of condensing temperature and dew point temperature
- High Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Low Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Remote Control: Optional configuration of remote connection dry contact, RS485 expansion interface (please let us know in advance if you need)
- Energy-saving design

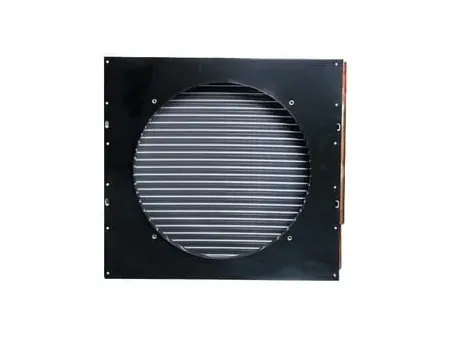

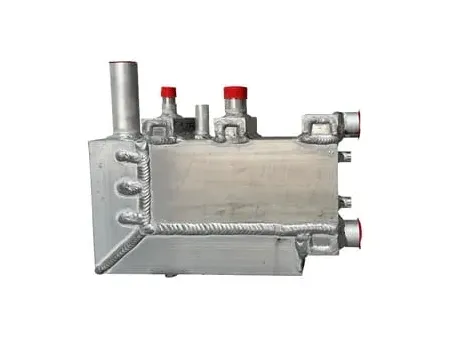

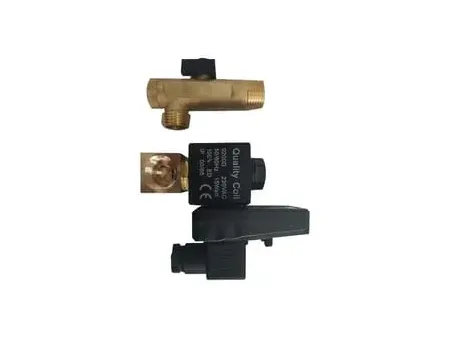

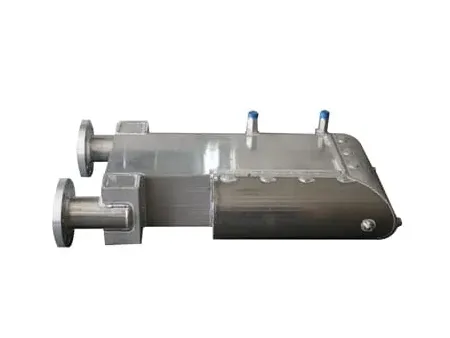

Incorporates an aluminum alloy three-in-one heat exchanger with an enlarged precooler, minimizing process cooling losses and maximizing thermal recovery.
Improves compressed air discharge temperature, effectively reducing the residual moisture content. - High efficiency
Integrated heat exchanger features flow guide fins for uniform heat transfer.
Equipped with a built-in air-water separator and stainless steel mesh filter for thorough moisture separation. - Intelligent control
Multi-point temperature and pressure monitoring with real-time dew point display.
Automatic recording of cumulative operating hours, along with self-diagnostic capabilities that display alarm codes and initiate protective functions when needed. - Environment friendly
Complies with the Montreal Protocol by utilizing R134a and R410A refrigerants with zero ozone depletion potential, meeting the requirements of international markets.
- Stable operation

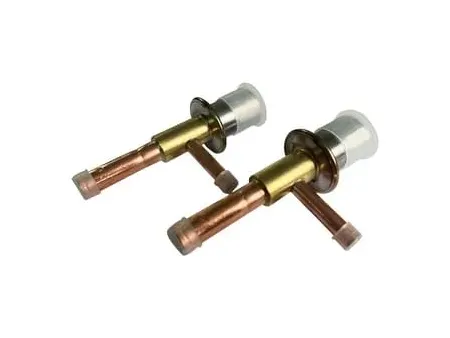

Standardized with a constant-pressure expansion valve for automatic refrigerant adjustment across diverse operating conditions.
Features dual anti-freeze protection (temperature and pressure), ensuring energy efficiency while extending equipment lifespan.
- Appearance: Visual aesthetic such as shape, color, and branding can be customized based on customer-supplied drawings or design concepts. Equipped with a large-scale UV printer, we can apply custom logos and brand-specific graphics directly onto the machine’s exterior.
- Configuration: Configurations can be tailored to include specified brands of components or customer-supplied parts. We can also design exclusive models that integrate designated components according to client requirements.
- Application: Models can be engineered for specialized applications, adapting to specific environments, media types, or unique operating conditions as required by the client.
- Performance: We can develop dryers with specialized performance characteristics to meet unique operational demands or industry-specific requirements.
Whether you need local assistance or international coordination, our team is ready to help. We’ll connect you with a trusted Tianer partner to support your compressed air treatment system needs- quickly, reliably, and personally.
