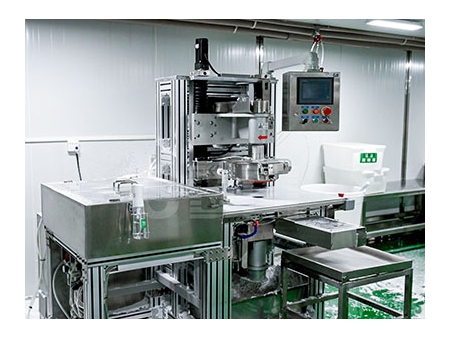

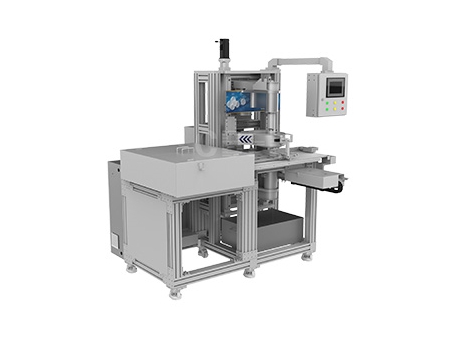

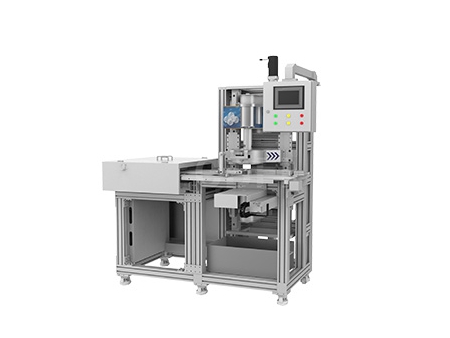

Automatic Ball Ice Machine Single-Head Ball Ice Maker
Effortless and efficient, the automatic ball ice machine is designed for high-quality, automated ice ball production, enhancing productivity while ensuring safety and durability. This ice making machine is ideally suitable for modern ice processing demands

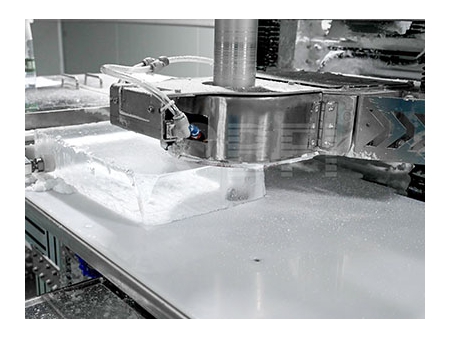

Compared to traditional single-head manual ice ball machine, the automatic ball ice machine model integrates advanced automation features such as automatic ice transfer, ice chip protection, ice chip collection, and automated ice ball collection and transfer. Its key advantages include:
-
-
Enhanced efficiency
Production capacity has tripled compared to traditional manual machines, significantly boosting output.
-
-

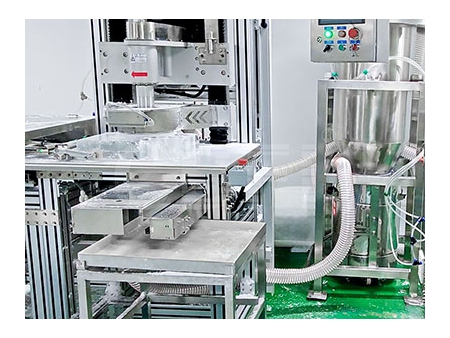

Automatic ice chip collection
Reduces the need for frequent manual cleaning, lowering labor intensity and saving time.
-
-
Durability and protection

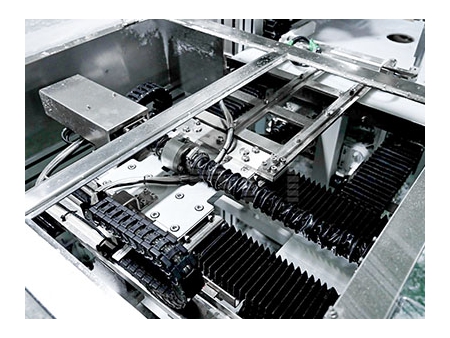

Equipped with ice chip protection to prevent corrosion and damage to the transmission components, ensuring long-lasting performance.
-
-
High degree of automation
Automated ice ball reception, transfer, and collection enable seamless integration with automated production lines for continuous processing and higher productivity.
-
-
Safety and ease of maintenance
Features protective covers for exposed moving parts to ensure operator safety. The simple structure provides ample maintenance space, making repairs and upkeep convenient.
| Machine size (L×W×H) | 1.83×1.83×2.1m |
| Working environment | clean workshop -10℃ to 35℃ |
| Voltage | single phase 220V/50Hz/60Hz |
| Air pressure | 0.4-0.6Mp |
| Power | 5kW |
| Noise level | ≤70db |
| Ice chip removal | manual cleaning (standard)/automatic collection (optional) |
| Loading & unloading | manual operation |
| Ball ice arrangement | automatic arrangement |
| Production cycle | 20-30 seconds per cycle |
- Each automatic ice ball machine is equipped with original and forward position detection capabilities, ensuring precise and reliable operation at all times.
- Features an MCGS touchscreen, offering a user-friendly interface with support for both English and Chinese. The touchscreen allows operators to switch between manual and automatic modes, select machine models and programs, diagnose faults, monitor system status, count workpieces, and adjust processing cycles effortlessly.
- A comprehensive fault alert system notifies operators of issues such as low air pressure, mechanical malfunctions, or misaligned workpieces, ensuring smooth and safe operation.
- The automatic ball ice machine is equipped with a dual alert mechanism, combining a three-color indicator light and a buzzer to provide both visual and audible notifications. Additionally, it includes a manual or automatic reset-to-home function for seamless operation recovery.
