HS280 - Brass Compression Fittings with Brass Insert for USA
Request a Quote
Website: http://brass-pipefittings.com/1-6-brass-compression-fittings-with-brass-insert-for-usa.html
Pipe fittings for use with copper tubing, aluminum tubing and plastic tubing
Brass compression fittings with brass insert are ideal for use with copper, brass, aluminum, or plastic tubing and are commonly used on gasoline, grease, oil, water, vacuum, and air lines. The fittings are not recommended for use with steel tube.
- Working temperature: -65°F to 250°F
- Working pressure: Temperature and type of tubing must be considered for proper fitting selection.
- The following is based on 70°F with copper tube.

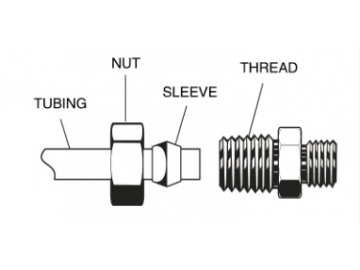

Cut tube square on the end. Start tubing on the insert and slide into the fitting until it hits the stop. Wrench tightens approximately 1 1/2 to 2 turns beyond hand tight. Do not over tighten.
Structure
- Union with Brass Insert
- Elbow with Brass Insert
- Tee with Brass Insert
Brass Compression Union with Brass Insert
Straight Union with Brass Insert, HS280-001
| Size | |
| 1/8“ | 1/2“ |
| 3/16“ | 5/8“ |
| 1/4“ | 3/4“ |
| 5/16“ | 7/8“ |
| 3/8“ | |
Reducing Union with Brass Insert, HS280-002
| Size | |
| 5/16“×1/4“ | 5/8“×1/2“ |
| 3/8“×1/4“ | 7/8“×5/8“ |
| 1/2“×1/4“ | |
| 1/2“×3/8“ | |
| 5/8“×3/8“ | |
Female Connector with Brass Insert, HS280-003
| Size | ||
| 1/4“×1/8"F | 3/8“×3/8"F | 7/8“×3/4"F |
| 1/4“×1/4"F | 3/8“×1/2"F | |
| 1/4“×3/8"F | 1/2“×3/8"F | |
| 1/4“×1/2"F | 1/2“×1/2"F | |
| 5/16“×1/4"F | 5/8“×1/2"F | |
| 3/8“×1/4"F | 5/8“×3/4"F | |
Male Connector with Brass Insert, HS280-004
| Size | |||
| 1/8“×1/8"M | 5/16“×1/8"M | 3/8“×3/4"M | 5/8“×3/4"M |
| 3/16“×1/8"M | 5/16“×1/4"M | 1/2“×3/8"M | 3/4“×1/2"M |
| 1/4“×1/8"M | 3/8“×1/8"M | 1/2“×1/2"M | 3/4“×3/4"M |
| 1/4“×1/4"M | 3/8“×1/4"M | 1/2“×3/4"M | 7/8“×1/2"M |
| 1/4“×3/8"M | 3/8“×3/8"M | 5/8“×3/8"M | 7/8“×3/4"M |
| 1/4“×1/2"M | 3/8“×1/2"M | 5/8“×1/2"M | |
Brass Compression Elbow with Brass Insert
Compression Equal Elbow with Brass Insert, HS280-005
| Size | |
| 1/4“ | 7/8“ |
| 3/8“ | |
| 1/2“ | |
| 5/8“ | |
| 3/4“ | |
Compression Male Elbow with Brass Insert, HS280-006
| Size | |
| 1/4“×1/8"M | 1/2“×1/2"M |
| 1/4“×1/4"M | 5/8“×3/8"M |
| 3/8“×1/4"M | 5/8“×1/2"M |
| 3/8“×3/8"M | |
| 3/8“×1/2"M | |
| 1/2“×3/8"M | |
Brass Compression Tee with Brass Insert
Compression 3-End Tee with Brass Insert, HS280-007
| Size | |
| 1/4“ | 7/8“ |
| 3/8“ | |
| 1/2“ | |
| 5/8“ | |
| 3/4“ | |
Compression 3-End Reducing Tee with Brass Insert, HS280-008
| Size |
| 3/8“×3/8“×1/4“M |
| 7/8“×7/8“×5/8“M |
