Press Fittings, Brass Fittings

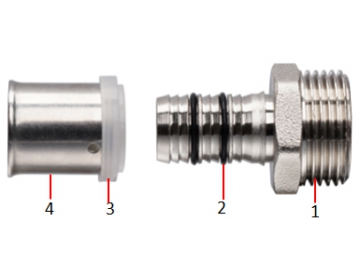

The press fitting is composed of a main body, a steel bushing, a plastic part and a seal ring.
The main material is brass generally made from CW617N or CU57-3. The steel bushing is made of 304 stainless steel with a wall thickness of at least 0.8m (the wall cannot be too thin, otherwise the risk of leaks increases, thus affecting performance levels.), The plastic parts can be customized with a nylon material to enhance the hardness, ensuring the steel bushing remains firmly attached. The seal rings are made of EPDM material with a high temperature resistance and a long service life.
We also provide surface treatments of electroplating, and all brass parts are machined using CNC lathes to ensure product dimensional accuracy.
Shown here are products we can provide, and we offer customization services in terms of shape, material, weight and size.
- Male Straight Press Fittings Nickel Plated
- Model:
VF-0430- Specification:
16mm x 1/2"
18mm x 1/2"
16mm x 3/4"
26mm x 3/4"
20mm x 1/2"
20mm x 3/4"
26mm x 1" -
- Female Straight Press Fittings Nickel Plated
- Model:
VF-0431A- Specification:
16mm x 1/2"
18mm x 1/2"
20mm x 1/2"
20mm x 3/4"
26mm x 1"
26mm x 3/4"
-
- Straight Press Fittings Nickel Plated
- Model:
VF-0432- Specification:
16mm x 16mm
18mm x 18mm
20mm x 16mm
20mm x 20mm
26mm x 20mm
26mm × 26mm
26mm x 16mm
-
- Male Elbow Press Fittings Nickel Plated
- Model:
VF-0433- Specification:
16mm x 1/2"
18mm x 1/2"
16mm x 3/4"
20mm x 3/4"
20mm x 1/2"
26mm x 3/4"
26mm x 1"
-
- Female Elbow Press Fittings Nickel Plated
- Model:
VF-0434A- Specification:
16mm x 1/2"
18mm x 1/2"
20mm x 1/2"
20mm x 3/4"
26mm × 3/4"
26mm × 1"
-
- Elbow Press Fittings Nickel Plated
- Model:
VF-0435- Specification:
16mm x 16mm
18mm x 18mm
20mm x 20mm
26mm x 26mm
-
- Wall Seat Press Fittings Nickel Plated
- Model:
VF-0436- Specification:
16mm x 1/2"
18mm x 1/2"
20mm x 1/2"
20mm x 3/4"
-
- Female Tee Press Fittings Nickel Plated
- Model:
VF-0438- Specification:
16mm x 1/2" x 16mm
18mm x 1/2" x 18mm
20mm x 1/2" x 20mm
26mm x 3/4" x 26mm
26mm x 1" x 26mm
-
- Tee Press Fittings Nickel Plated
- Model:
VF-0439- Specification:
16mm x 16mm x 16mm
18mm x 18mm x 18mm
20mm x 16mm x 20mm
20mm x 16mm x 16mm
20mm x 20mm x 16mm
20mm x 20mm x 20mm
26mm x 26mm x 26mm
26mm x 16mm x 26mm
26mm x 20mm x 26mm
