CRM-80 Double Corner Rounding Machine

CRM-80 Double Corner Rounding Machine
CRM-80 Double Corner Rounding Machine
CRM-80 Double Corner Rounding Machine
Request a Quote

CRM-80 double corner rounding machine is designed for simultaneous cutting of the two corners of a book or a pile of paper to make them round, which could prevent the risk of papercuts and be safer. The round corner cutting machine is widely used in the production of children’s books, magazines, flexible packaging bags, hang tags, ID cards, and other printed materials.
This corner rounding machine comes with 8 standard corner cutting knives (R3–R12), offering a variety of round corner types. The corner rounding machine is made of high-speed steel for durability, and it delivers a maximum cutting speed of up to 800 cuts per minute. It provides smooth, precise, and consistent corner rounding for both small-scale and high-volume projects.

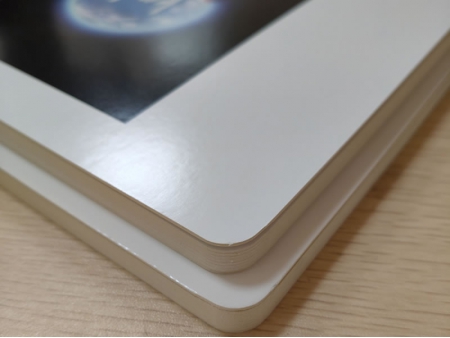

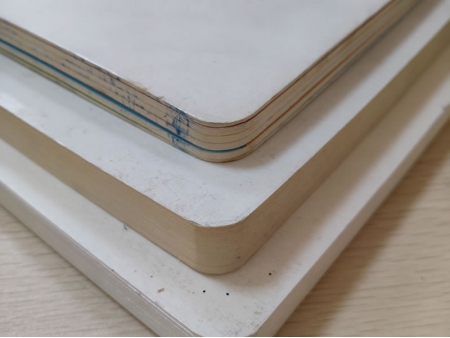

Round Corner Types

Parameter
Maximum cutting thickness 80mm
Cutting speed 600-800 times/hr
Maximum book width 460mm
Minimum book width 80mm
Total power 2.2kw
Voltage 220V/1PH/50HZ
Weight 460kg
Round size R3-R12
Power consumption 0.3kW
Air pressure 6-8 bar
Dimension (L×W×H) 1100×760×1600mm
Net weight 241kg

Single-head round corner cutting machine for producing rounded corners of paper sheets up to 120mm in height

This electrically powered corner rounding machine uses a gearbox drive and a mechanical clutch to cut rounded or beveled corners on paper. The round corner cutting machine delivers precise cuts with various corner sizes while remaining simple and convenient to operate.

Parameter
Max. height of corner cutting 120mm
Cutting speed 90 times/min
Voltage/power 380V/550W
Machine weight 270kg
Machine dimensions 1150×500×1350mm
Optional tool sizes R2.S/R3/R3.S/R4/R5/R5.5/R6/R6.5/R8/R10/R12
