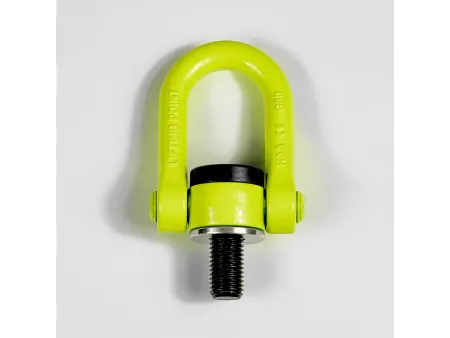

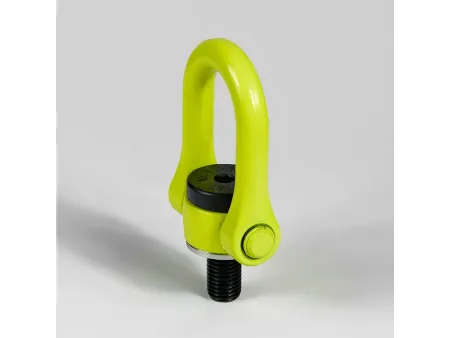

Super Swivel Ring

Request a Quote

Website: http://loadlifting-en.com/1-6-super-swivel-ring-05-50t.html

BLTS Rigging Hardware

Working Load Limit 0.5-50t

Rotation 360 degree

Pivot 180 degree

Material: High-strength chromium-molybdenum alloy steel
Attachment type: Screw-in
Rotation angle: 360°
Pivot angle: 180°
Surface treatment (rings): Powder-coated
Surface treatment (bolts): Black oxide finish
Working temperature range: -40℃~ 200℃
Thread size: M8–M100
Bolt grade: 10.9
Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
Rotates under load: No
Holding spring for suspension link: No
Working load limit: 0.5T-50T
Safety factor: 4:1
Standard: DIN EN 1677-1
Explosion protection: No
RAL color No.: Customizable
Identification label available: No

Inspection and Standards

Passed 6g plug gauge inspection for compatibility with precision-threaded holes
Endured 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing for performance verification
Verified through magnetic particle inspection to ensure crack-free integrity
Complies with EN1677-1 production standards, with certified test reports available upon request

Applications

Construction: Ideal for lifting structural components and prefabricated elements. Its flexibility minimizes lifting path restrictions, resolving challenges in construction operations
Transportation: Suitable for lifting and transporting heavy industrial equipment such as transformers and generator sets

The super swivel ring, designed for heavy-duty lifting operations, offers a load-bearing capacity of 0.5-50t. Featuring 360° rotation and 180° pivot, it provides safe and precise load handling, reducing constraints on lifting angles. Its forged alloy steel construction ensures superior strength and durability, making it an ideal choice for challenging environments like construction and oil & gas applications.

Key Features

360° rotation and 180° pivot for versatile lifting operations
Hexagonal internal bolt design ensures quick and easy installation
One-piece forged construction with no welds, ensuring high safety and durability
Available in M8–M100 and customizable thread sizes, including lengthened, shortened, coarse, fine, metric, and UNC threads
Working load limit (WLL) of 0.5-50T.
4:1 safety factor with 100% non-destructive testing for reliable performance
Each load-bearing component includes a production batch number for traceability
Made from high-strength chromium-molybdenum alloy steel, quenched and tempered for enhanced strength and toughness
Epoxy resin electrostatic powder coating for the ring body and black oxide treatment for the bolt, providing excellent corrosion resistance

Specifications

(Available in Metric Thread and UNC Thread)

Item No.	Working Load Limit (t)	Thread M	Dimensions (mm)									Torque (Nm)	Weight (kg)
Item No.	Working Load Limit (t)	Thread M	E	A±3	B±3	C	D	F	K±3	H	S	Torque (Nm)	Weight (kg)
BLTS-M8	0.5	8×1.25	12	50.5	37	76	14	101.5	49.5	38	8	10-40	0.8
BLTS-M10	0.7	10×1.50	16	50.5	37	76	14	101.5	49.5	38	8	10-40	0.8
BLTS-M12	1.0	12×1.75	18	50.5	37	76	14	101.5	49.5	38	8	15-40	0.8
BLTS-M14	1.5	14×2.00	21	50.5	37	76	14	101.5	49.5	38	8	30-100	0.8
BLTS-M16	2.0	16×2.00	24	50.5	37	76	14	101.5	49.5	38	8	45-130	0.8
BLTS-M18	2.5	18×2.50	40	74.5	54	105	20	145.0	77.0	48	12	100-170	1.9
BLTS-M20	3.0	20×2.50	40	74.5	54	105	20	145.0	77.0	48	12	100-170	2.0
BLTS-M22	3.0	22×2.50	40	74.5	54	105	20	145.0	77.0	48	12	100-170	2.1
BLTS-M24	4.5	24×3.00	40	74.5	54	105	20	145.0	77.0	48	12	190-280	2.5
BLTS-M27	5.0	27×3.00	40	98.5	73	146	30	201.5	103.5	68	17	250-500	5.5
BLTS-M30	7.3	30×3.50	45	98.5	73	146	30	201.5	103.5	68	17	270-600	5.5
BLTS-M33	8.0	33×3.50	50	98.5	73	146	30	201.5	103.5	68	17	270-600	5.5
BLTS-M36	10.0	36×4.00	54	98.5	73	146	30	201.5	103.5	68	17	270-600	5.5
BLTS-M39	10.0	39×4.00	58	98.5	73	146	30	201.5	103.5	68	17	350-800	6.0
BLTS-M42	12.5	42×4.50	63	98.5	73	146	30	201.5	103.5	68	17	350-800	6.0
BLTS-M45	15.0	45×4.50	63	98.5	73	146	30	201.5	103.5	68	17	350-800	6.0
BLTS-M48S	16.0	48×5.00	63	98.5	73	146	30	201.5	101.5	70	17	350-800	6.5
BLTS-M48B	20.0	48×5.00	68	120.0	93	182	36	249.0	125.0	84	19	350-800	11.5
BLTS-M52	20.0	52×5.00	68	120.0	93	182	36	249.0	125.0	84	19	350-900	12.0
BLTS-M56	25.0	56×5.50	78	120.0	93	182	36	249.0	125.0	84	19	350-900	12.0
BLTS-M60	25.0	60×5.50	90	120.0	93	182	36	253.0	125.0	88	19	350-600	13.0
BLTS-M64S	32.0	64×6.00	90	120.0	93	182	36	253.0	125.0	88	19	500-1000	13.0
BLTS-M64B	33.0	64×6.00	100	185.0	144	280	58	395.0	195.0	136	36	500-1000	42.0
BLTS-M72×4	35.0	72×4.00	110	185.0	144	280	58	395.0	195.0	136	36	500-1200	43.0
BLTS-M72×6	35.0	72×6.00	110	185.0	144	280	58	395.0	195.0	136	36	500-1200	43.0
BLTS-M80	40.0	80×6.00	120	185.0	144	280	58	395.0	195.0	136	36	500-1200	44.5
BLTS-M90	45.0	90×6.00	135	185.0	144	280	58	395.0	195.0	136	36	500-1500	46.5
BLTS-M100	50.0	100×6.00	150	185.0	144	280	58	395.0	195.0	136	36	500-1700	49.0

* Safety factor of 4:1;
* The length and thread of bolts can be made according to requirements;

Working Load Applications

Lifting Method
Number of Sling Leg		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Item No.	Thread M	Working Load Limit (t)
BLTS-M8	8	0.5	1.0	0.5	1.0	0.7	0.5	0.5	1.10	0.80	0.5
BLTS-M10	10	0.7	1.4	0.7	1.4	1.0	0.7	0.7	1.50	1.10	0.7
BLTS-M12	12	1.0	2.0	1.0	2.0	1.4	1.0	1.0	2.10	1.50	1.0
BLTS-M14	14	1.5	3.0	1.5	3.0	2.1	1.5	1.5	3.15	2.30	1.5
BLTS-M16	16	2.0	4.0	2.0	4.0	2.8	2.0	2.0	4.20	3.00	2.0
BLTS-M18	18	2.5	5.0	2.5	5.0	3.5	2.5	2.5	5.25	3.75	2.5
BLTS-M20	20	3.0	6.0	3.0	6.0	4.2	3.0	3.0	6.30	4.50	3.0
BLTS-M22	22	3.0	6.0	3.0	6.0	4.2	3.0	3.0	6.30	4.50	3.0
BLTS-M24	24	4.5	9.0	4.5	9.0	6.3	4.5	4.5	9.45	6.80	4.5
BLTS-M27	27	5.0	10.0	5.0	10.0	7.0	5.0	5.0	10.50	7.50	5.0
BLTS-M30	30	7.3	14.6	7.3	14.6	10.2	7.3	7.3	15.30	11.00	7.3
BLTS-M33	33	8.0	16.0	8.0	16.0	11.2	8.0	8.0	16.80	12.00	8.0
BLTS-M36	36	10.0	20.0	10.0	20.0	14.0	10.0	10.0	21.00	15.00	10.0
BLTS-M39	39	10.0	20.0	10.0	20.0	14.0	10.0	10.0	21.00	15.00	10.0
BLTS-M42	42	12.5	25.0	12.5	25.0	17.5	12.5	12.5	26.30	18.80	12.5
BLTS-M45	45	15.0	30.0	15.0	30.0	21.0	15.0	15.0	31.50	22.50	15.0
BLTS-M48S	48	16.0	32.0	16.0	32.0	22.4	16.0	16.0	33.50	24.00	16.0
BLTS-M48B	48	20.0	40.0	20.0	40.0	28.0	20.0	20.0	42.00	30.00	20.0
BLTS-M52	52	20.0	40.0	20.0	40.0	28.0	20.0	20.0	42.00	30.00	20.0
BLTS-M56	56	25.0	50.0	25.0	50.0	35.0	25.0	25.0	53.00	37.50	25.0
BLTS-M60	60	25.0	50.0	25.0	50.0	35.0	25.0	25.0	52.50	37.50	25.0
BLTS-M64S	64	32.0	64.0	32.0	64.0	45.0	32.0	32.0	67.00	48.00	32.0
BLTS-M64B	64	33.0	66.0	33.0	66.0	46.2	33.0	33.0	69.30	49.50	33.0
BLTS-M72×4	72	35.0	70.0	35.0	70.0	49.0	35.0	35.0	73.50	52.50	35.0
BLTS-M72×6	72	35.0	70.0	35.0	70.0	49.0	35.0	35.0	73.50	52.50	35.0
BLTS-M80	80	40.0	80.0	40.0	80.0	56.0	40.0	40.0	84.00	60.00	40.0
BLTS-M90	90	45.0	90.0	45.0	90.0	63.0	45.0	45.0	94.50	67.50	45.0
BLTS-M100	100	50.0	100.0	50.0	100.0	70.0	50.0	50.0	105.00	75.00	50.0

Item No.	Working Load Limit (t)	Thread		Dimensions (mm)									Torque (Nm)	Weight (kg)
Item No.	Working Load Limit (t)	M	TPI	E	A±3	B±3	C	D	F	K±3	H	S	Torque (Nm)	Weight (kg)
BLTS-3/8	0.7	3/8	16.0	16	50.5	37	76	14	101.5	49.5	38	8	10-40	0.8
BLTS-1/2	1.5	1/2	13.0	21	50.5	37	76	14	101.5	49.5	38	8	15-40	0.8
BLTS-5/8	2.0	5/8	11.0	24	50.5	27	76	14	101.5	49.5	38	8	45-130	0.8
BLTS-3/4	3.0	3/4	10.0	40	74.5	54	105	20	145.0	77.0	48	12	45-130	2.0
BLTS-7/8	3.0	7/8	9.0	40	74.5	54	105	20	145.0	77.0	48	12	100-170	2.1
BLTS-1	4.5	1	8.0	40	74.5	54	105	20	145.0	77.0	48	17	190-280	2.5
BLTS-1-1/4	8.0	1-1/4	7.0	45	98.5	73	146	30	201.5	103.5	68	17	270-600	5.5
BLTS-1-1/2	10.0	1-1/2	6.0	54	98.5	73	146	30	201.5	103.5	68	17	270-600	5.5
BLTS-1-3/4	15.0	1-3/4	5.0	63	98.5	73	146	30	201.5	103.5	68	17	350-800	6.0
BLTS-2	20.0	2	4.5	68	120.0	93	182	36	249.0	125.0	84	19	350-800	12.0
BLTS-2-1/4	25.0	2-1/4	4.5	78	120.0	93	182	36	249.0	125.0	84	19	350-900	12.0
BLTS-2-1/2	32.0	2-1/2	4.0	90	120.0	93	182	36	253.0	125.0	88	19	500-1400	13.0
BLTS-2-3/4	33.0	2-3/4	4.0	110	185.0	144	280	58	395.0	195.0	136	36	500-1400	42.5
BLTS-3	35.0	3-4	4.0	120	185.0	144	280	58	395.0	195.0	136	36	500-1400	43.5

* Safety factor of 4:1;
* The length and thread of bolts can be made according to requirements;

Working Load Applications

Lifting Method
Number of Sling Legs		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Item No.	Thread M	Working Load Limit (t)
BLTS-3/8	3/8	0.7	1.4	0.7	1.4	1.0	0.7	0.7	1.50	1.1	0.7
BLTS-1/2	1/2	1.5	3.0	1.5	3.0	2.1	1.5	1.5	3.15	2.3	1.5
BLTS-5/8	5/8	2.0	4.0	2.0	4.0	2.8	2.0	2.0	4.20	3.0	2.0
BLTS-3/4	3/4	3.0	6.0	3.0	6.0	4.2	3.0	3.0	6.30	4.5	3.0
BLTS-7/8	7/8	3.0	6.0	3.0	6.0	4.2	3.0	3.0	6.30	4.5	3.0
BLTS-1	1	4.5	9.0	4.5	9.0	6.3	4.5	4.5	9.45	6.8	4.5
BLTS-1-1/4	1-1/4	8.0	16.0	8.0	16.0	11.2	8.0	8.0	16.80	12.0	8.0
BLTS-1-1/2	1-1/2	10.0	20.0	10.0	20.0	14.0	10.0	10.0	21.00	15.0	10.0
BLTS-1-3/4	1-3/4	15.0	30.0	15.0	30.0	21.0	15.0	15.0	31.50	22.5	15.0
BLTS-2	2	20.0	40.0	20.0	40.0	28.0	20.0	20.0	42.00	30.0	20.0
BLTS-2-1/4	2-1/4	25.0	50.0	25.0	50.0	35.0	25.0	25.0	53.00	37.5	25.0
BLTS-2-1/2	2-1/2	32.0	64.0	32.0	64.0	45.0	32.0	32.0	67.00	48.0	32.0
BLTS-2-3/4	2-3/4	33.0	66.0	33.0	66.0	46.2	33.0	33.0	69.30	49.5	33.0
BLTS-3	3	35.0	70.0	35.0	70.0	49.0	35.0	35.0	73.50	52.5	35.0
