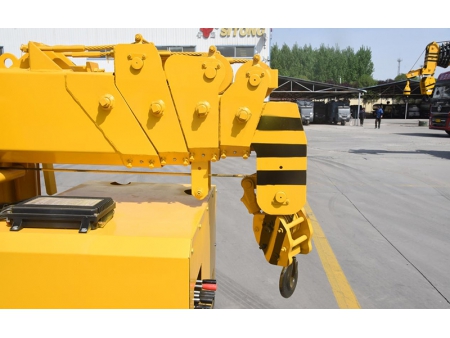

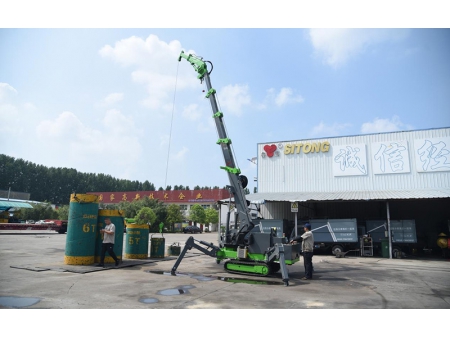

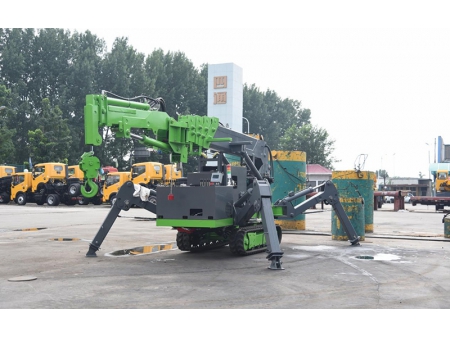

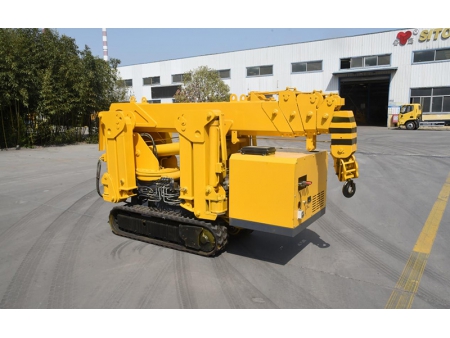

3T Crawler Spider Crane
Request a Quote
The 3T crawler spider crane can lift up to 3 tons and offers a maximum working radius of 8.6m. With a compact structure and small footprint, this crawler spider crane moves efficiently through narrow streets and complex terrains.
Specifications
| Crane capacity | 3T×2.5m | |
| Max. working radius | 8.6m×0.15T | |
| Max. lifting height | 9.6m×0.7T | |
| Winch | Lifting speed | 0-8m/min (4 ropes) |
| Wire rope size | Ø8mm×45m | |
| Telescopic system | Boom type | Hexagonal shaped boom, 5 sections |
| Telescopic boom length | 3.1-9.2m | |
| Telescoping speed | 9.2m/20s | |
| Derricking angle/speed | 0-78°/13s | |
| Slewing angle/speed | 0-360° (continuous)/60s | |
| Outrigger | Outrigger action | Manual hydraulic (two-section legs) |
| Traction system | Drive | Hydraulic motor, two speeds |
| Travel speed | 0-2.5km/h | |
| Gradeability | 20° (36%) | |
| Electric motor | Voltage | AC380V |
| Engine | Manufacturer | YOUPU 195 |
| Type | Double-cylinder 2V80 | |
| Starting method | Electric | |
| Starting temperature | -5°C to 40°C | |
| Fuel/tank capacity | Diesel/8L | |
| Battery capacity | 12V 45AH | |
| Fuel consumption | 274g/kW-h | |
| Sound level | Rated speed ≦81.5dBA(1m) | |
| Emission standard | China III | |
| Operation system | Type of operation (boom/outrigger) | Manual operation, manual travel |
| Operating characteristics | Manual operation | |
| Standard configuration | Diesel engine and electric motor (dual drive) | |
| Dimensions | 2900×950×1500mm | |
