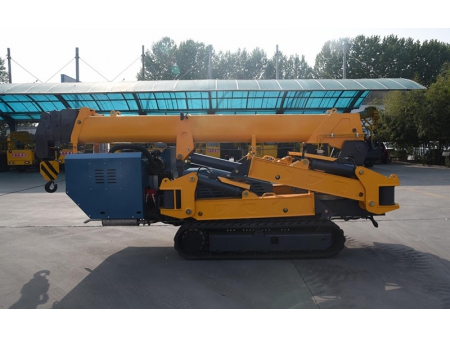

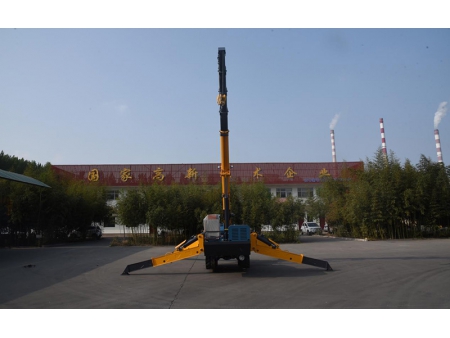

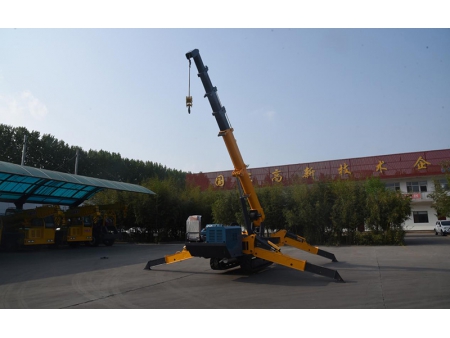

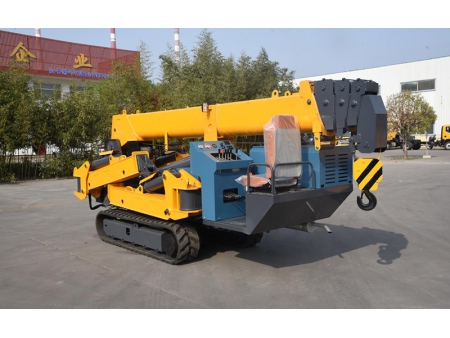

5T Crawler Spider Crane
Request a Quote
The 5-ton crawler spider crane features a five-section U-shaped boom, it reduces weight while enhancing lifting performance. Powered by a high-performance YUNNEI 490 engine, this crawler spider cane reaches a maximum working radius of 14.5m, making it ideal for confined spaces.
Specifications
| Crane capacity | 5T×2.5m | |
| Max. working radius | 14.5m | |
| Max. lifting height | 16.2m | |
| Winch | Lifting speed | 12m/min (4 ropes) |
| Wire rope size | Ø11mm×80m | |
| Telescopic system | Boom type | U-shaped boom, 5 sections |
| Telescopic boom length | 4.7-16.5m | |
| Telescoping speed | 12.3m/54s | |
| Derricking angle/speed | 0-78°/13s | |
| Slewing angle/speed | 0-360° (continuous)/38s | |
| Outrigger | Outrigger action | Manual hydraulic (two-section legs) |
| Max. extension | Left/right 6700mm Front/back 4700mm | |
| Traction system | Drive | Hydraulic motor |
| Travel speed | 0-2.5km/h | |
| Gradeability | 20°(36%) | |
| Electric motor | Voltage | AC380V |
| Engine | Manufacturer | YUNNEI |
| Type | 490 | |
| Starting method | Electric | |
| Starting temperature | -5°C to 40°C | |
| Fuel/tank capacity | Diesel/60L | |
| Battery capacity | 12V 80AH | |
| Emission standard | China II | |
| Operation system | Type of operation (boom/outrigger) | Manual operation, manual travel |
| Operating characteristics | Manual operation | |
| Standard configuration | Diesel engine and electric motor (dual drive) | |
| Dimensions | 5050×1400×2200mm | |
| Total weight | 6000kg | |
