Multi-head mortiser machine for slot mortising on multiple wood components

Woodworking Machinery
  • Max. working length1450mm
  • Max. working width160mm
  • Machine weight1400kg
  • Machine dimensions (L×W×H)3100×2200×2300mm

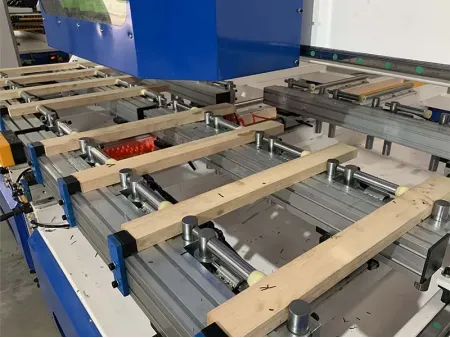

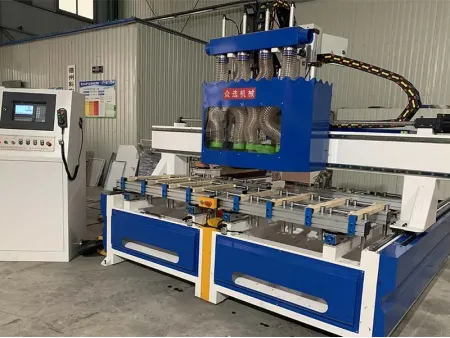

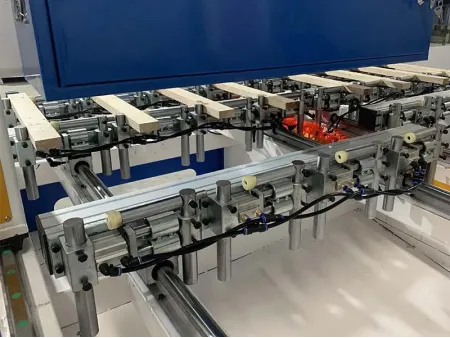

The automatic double table mortising machine is mainly used for high-efficiency production of wood mortises. With dual worktables, it allows simultaneous machining and loading/unloading, minimizing downtime and improving overall workflow efficiency. It supports multiple-head configurations for processing several workpieces at once, making it ideal for mass production in furniture and frame manufacturing.

Specifications
  • Max. working length1450mm
  • Max. working width160mm
  • Max. working height150mm
  • Dust suction inlet diameterØ98×4pcs
  • Air pressure0.4-0.9MPa
  • Cutter diameter5-30mm
  • Total power20.0kW
  • Spindle power4-6.0kW
  • Machine weight1400kg
  • Machine dimensions (L×W×H)3100×2200×2300mm
Advantages
  • Working dimensions are adjustable to accommodate various sizes.
  • Dual worktables enable continuous, high-speed machining.
  • Mortising angle can be adjusted to match specific joint or design requirements.
Applications

Used for cutting wood mortises and slot-type holes in solid wood components, such as furniture frames, chair parts, and doors.
