Grooved Pipe End Cap
Product Introduction
These grooved end caps comply with, and are manufactured according to the following standards:
Pressure rating: 300 psi
ASTM A 536 - Grade 65-45-12
ANSI B 16.3 - Malleable Iron Threaded Fittings Classes 150
ANSI/ASME B1.20.1 - Pipe Threads, General Purpose (inch) NPT
UL listed, FM Approved
Technical Data

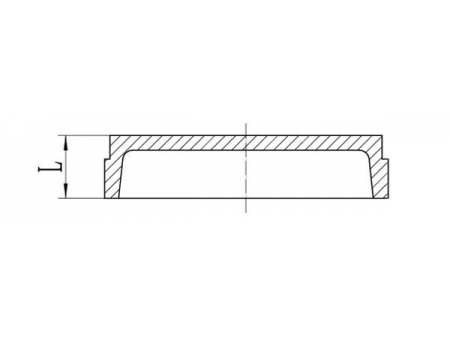

Nominal Size mm/in | Pipe O.D mm/in | Dimensions | Working Pressure (psi) |
L(mm) | |||
25 | 33.7 | 23.8 | 300 |
1 | 1.327 | ||
32 | 42.4 | 23.8 | |
11/4 | 1.669 | ||
40 | 48.3 | 23.8 | |
11/2 | 1.9 | ||
50 | 60.3 | 23.8 | |
2 | 2.375 | ||
65 | 76.1 | 23.8 | |
21/2 | 3 | ||
80 | 88.9 | 23.8 | |
3 | 3.5 | ||
100 | 108 | 25.4 | |
4 | 4.25 | ||
100 | 114.3 | 25.4 | |
4 | 4.5 | ||
125 | 133 | 25.4 | |
5 | 5.25 | ||
125 | 139.7 | 25.4 | |
5 | 5.5 | ||
125 | 141.3 | 25.4 | |
5 | 5.563 | ||
150 | 159 | 25.4 | |
5 | 6.25 | ||
150 | 165.1 | 25.4 | |
6 | 6.5 | ||
150 | 168.3 | 25.4 | |
6 | 6.625 | ||
200 | 219.1 | 32 | |
8 | 8.625 | ||
250 | 273 | 32 | |
10 | 10.75 | ||
300 | 323.9 | 32 | |
12 | 12.75 |
LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe end cap manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of grooved pipe end cap fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron pipe end cap as well as custom firefighting and water supply solutions based on the client needs.
