Heat Shrink Cable End Cap
Request a Quote

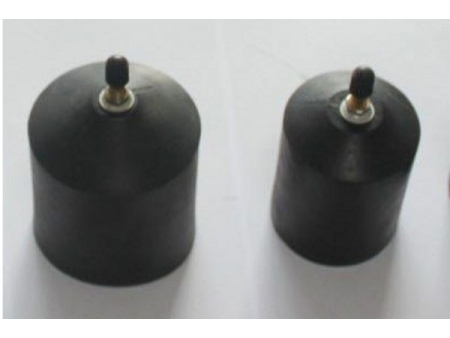

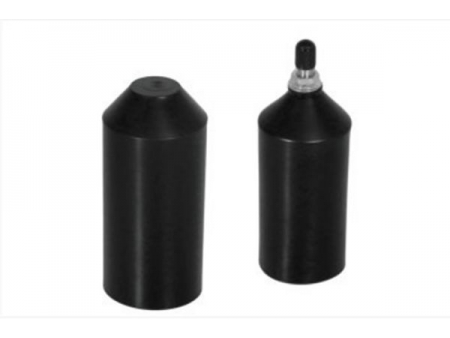

Heat shrink cable end cap provides protection to cable ends. In WOER, two types of heat shrink end caps are provided. One is the traditional end cap with adhesive lining that achieves extraordinary environmental insulation and sealing, which, when being heated, helps make a safe and watertight bond with cables. The other is cable end cap with valves that also has adhesive lining while allowing you to inject noble gases to achieve even greater insulation and protection.
Technical Data
| Property | Test Method | Standard Value |
| Tensile Strength | ASTM-D-638 | ≥12MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
| Volume Resistivity | IEC 60093 | ≥1× Ω.cm |
| Dielectric Strength | IEC 60243 | ≥15kV (mm) |
| Brittle Temperature | ISO 974 | -40℃ |
| Heat Shock | 160℃, 4h | No Crack |
| Water Absorption (23±2)℃ 24h | ISO 62 | ≤0.1% |
| Hardness (Shore A) | ISO 868 | ≥80 |
Dimensions
| Spec. | As Supplied (mm) | After Recovered (mm) | |||
| Inner Diameter Min | Wall Thickness (±20%) | Height (±5) | Inner Diameter Max | Wall Thickness (±10%) | |
| WRSFM-12 | 12 | 1.0 | 45 | 5 | 2.5 |
| WRSFM-16 | 16 | 1.0 | 70 | 8.5 | 2.5 |
| WRSFM-20 | 20 | 1.0 | 70 | 8.5 | 2.5 |
| WRSFM-25 | 25 | 1.0 | 80 | 11 | 2.5 |
| WRSFM-30 | 30 | 1.3 | 95 | 16 | 2.8 |
| WRSFM-35 | 35 | 1.0 | 95 | 18 | 2.6 |
| WRSFM-40 | 40 | 1.1 | 95 | 18 | 2.6 |
| WRSFM-55 | 55 | 1.0 | 125 | 26 | 2.7 |
| WRSFM-75 | 75 | 1.3 | 145 | 31 | 3.2 |
| WRSFM-100 | 97 | 1.3 | 140 | 40 | 5.2 |
| WRSFM-120 | 117 | 1.3 | 155 | 57 | 4.0 |
| WRSFM-140 | 140 | 1.3 | 185 | 63 | 4.0 |
| WRSFM-160 | 158 | 2.1 | 270 | 95 | 4.0 |
| WRSFM-180 | 180 | 2.1 | 270 | 95 | 4.0 |
| WRSFM-200 | 200 | 1.5 | 270 | 95 | 4.0 |
| WRSFM-250 | 245 | 1.5 | 270 | 95 | 4.0 |
