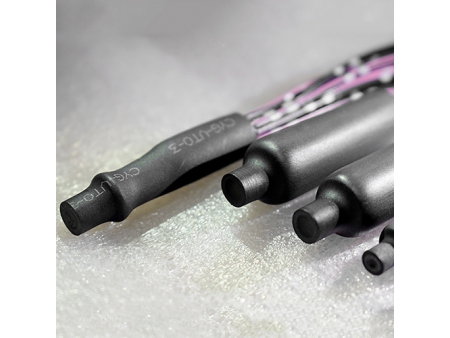

Heat Shrink End Cap, SBRS-CAPS
Model: SBRS-CAPS
Adhesive-lined heat shrinkable insulating end cap
SBRS-CAPS heat shrink end cap is an adhesive-lined heat shrinkable insulating end cap with 4:1 shrink ratio, specially designed for insulation, sealing and protection of varying end or stub splices in wiring harnesses and electronic assemblies.
Features
- 4:1 shrink ratio allows few sizes to cover a wide range of splices
- Sealing and protection against water, moisture and chemical
- Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets
- Shrinks rapidly for quick installation
- Continuous operating temperature: -45℃～125℃
- Minimum shrinking temperature: 125℃
| Property | Test Method | Standard Performance | Typical Performance |
| Tensile strength (MPa) | ASTM D 2671 | ≥10.4 | 11.5 |
| Elongation (%) | ASTM D 2671 | ≥300 | 450 |
| Tensile strength after aging (MPa) | UL224 158℃×168hr | ≥7.3 | 8.5 |
| Elongation after aging (%) | UL224 158℃×168hr | ≥200 | 350 |
| Dielectric strength (kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1×1014 | 2.5×1014 |
| Order Code | Size (mm) | Standard Length (mm) | Expanded | After Recovery | |||
| Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness(mm) | Outside Layer Thickness (mm) | Adhesive Thickness (mm) | |||
| | 3.2 | 22 | ≥3.2 | ≤0.8 | 1.20±0.30 | 0.64±0.20 | 0.56±0.20 |
| | 4.8 | 25.4 | ≥4.8 | ≤1.3 | 1.52±0.30 | 0.76±0.20 | 0.76±0.20 |
| | 6.4 | 8.42 | ≥6.4 | ≤1.52 | 1.91±0.30 | 1.00±0.20 | 0.91±0.20 |
