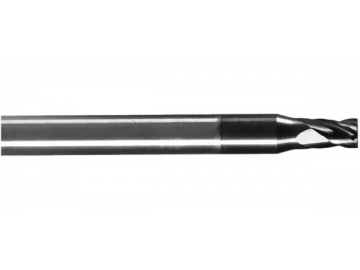

S-R4/RS4 Solid Carbide End Mill for Stainless Steel Machining - Corner Radius - 4 Flutes - Short Flute

S-R4/RS4  Solid Carbide End Mill for Stainless Steel Machining - Corner Radius - 4 Flutes - Short Flute
S-R4/RS4  Solid Carbide End Mill for Stainless Steel Machining - Corner Radius - 4 Flutes - Short Flute
S-R4/RS4  Solid Carbide End Mill for Stainless Steel Machining - Corner Radius - 4 Flutes - Short Flute
Request a Quote
Request a quote

Unit: mm

Order CodeCutting Diameter (D)Length of Cut (Lc)Corner Radius (r)Overall Length (L)Shank Diameter (d)Type
S-R4-02002
260.2504A
S-R4-03003
390.3504A
S-R4-03005
390.5504A
S-R4-04003
4110.3504B
S-R4-04005
4110.5504B
S-R4-64002
4110.2506A
S-R4-64003
4110.3506A
S-R4-05005
5130.5506B
S-R4-06005
6160.5506B
S-RS4-06005
660.5506B
S-R4-08002
8200.2608B
S-R4-08005
8200.5608B
S-R4-08010
8201608B
S-R4-10005
10250.57510B

Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
