Bogies
Request a Quote
Undercarriage Parts
PT'ZM specializes in the manufacturing of undercarriage components for heavy equipment, producing a full range of parts such as track rollers, carrier rollers, idlers, and other key undercarriage assemblies.

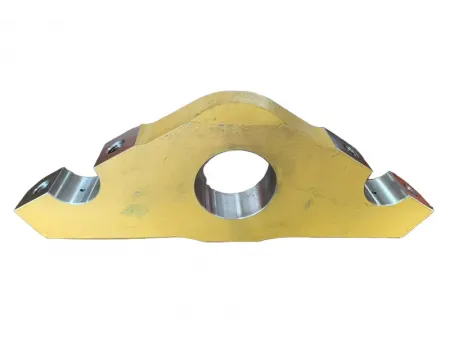

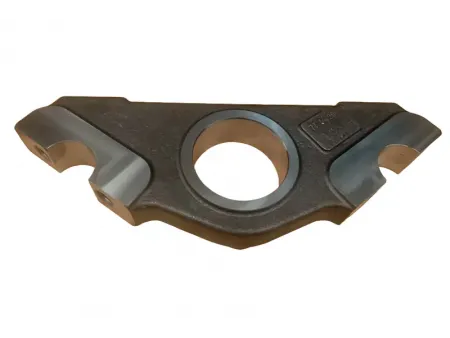

The bogie is a critical load-bearing component in the undercarriage system of tracked dozers, designed to distribute weight evenly and absorb impact during operation. Positioned within the track support system, it plays a vital role in enhancing machine stability, ride comfort, and ground adaptability. PT'ZM supplies a full range of high-strength bogies compatible with Caterpillar and Komatsu heavy machines. Engineered for durability and structural integrity, our bogies perform reliably in heavy-duty applications such as mining, construction, and earthmoving, ensuring reduced downtime and extended machine life in challenging environments.
| No. | Model | Description | Part No. | Unit weight (kgs) |
| 1 | D8 | BOGIE-MINOR | 7T-8555 | 13.7 |
| 2 | D9 | BOGIE-MINOR | 7T-5420 | 15.35 |
| 3 | D275 | BOGIE-MINOR | 17M-30-56122 | 20.9 |
| 4 | D375 | BOGIE-MINOR | 195-30-66520 | 27 |
| 5 | D10 | BOGIE-MINOR | 6T-1382 | 23 |
| 6 | D11 | BOGIE-MINOR | 2618287, | 29 |
| 7 | D11 | BOGIE-MINOR | 2618288 | 29 |
