Bogie Pin Assemblies

Request a Quote

Website: http://constructionparts-en.com/1-9-bogie-pin-assemblies.html

Undercarriage Parts

PT'ZM specializes in the manufacturing of undercarriage components for heavy equipment, producing a full range of parts such as track rollers, carrier rollers, idlers, and other key undercarriage assemblies.

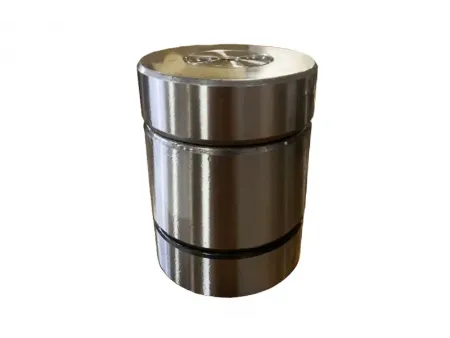

Bogie pin assemblies are essential load-bearing connectors within the undercarriage structure of bulldozers, designed to secure the bogie frame to key components such as the track roller and idler. Subjected to frequent shock and vibration, these pins must withstand the harshest working environments.

PT'ZM supplies a wide range of high-strength bogie pin assemblies compatible with various Caterpillar and Komatsu bulldozer models. Manufactured from premium alloy steel and treated through advanced heat processes, our pins deliver exceptional wear resistance and structural reliability, ensuring long-lasting performance in demanding construction and mining applications.

No.	Model	Description	Part No.	Unit Weight (kgs)
1	D8	Pin assembly	7T-9307	5.5
2	D9	Pin assembly	7T-9307	5.5

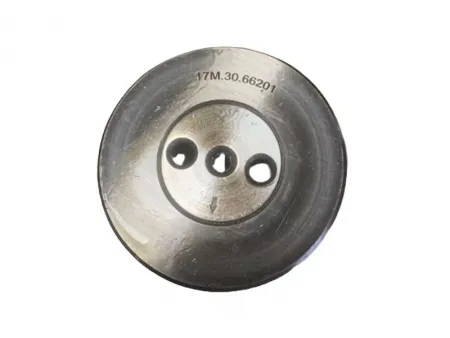

3	D275	Pin assembly	17M-30-56201	5.52
4	D375	Pin assembly	195-30-62400	8.51
5	D10	Pin assembly	7T-9309	7.4
6	D11	Pin assembly	7T-9311	10
