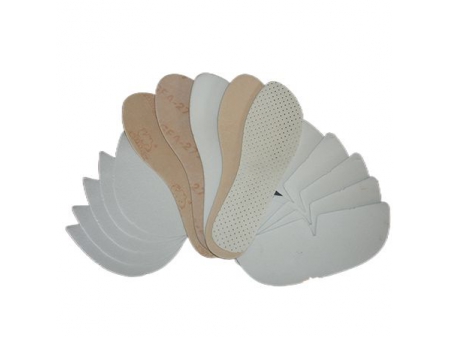

Hot melt coating machine suitable for making toe puffs and counters

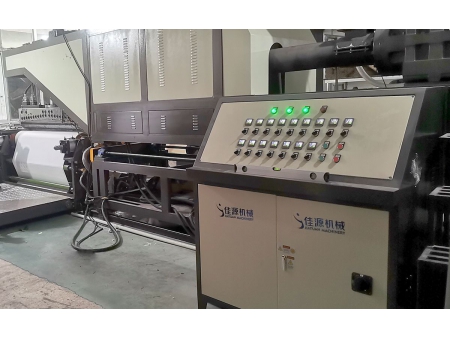

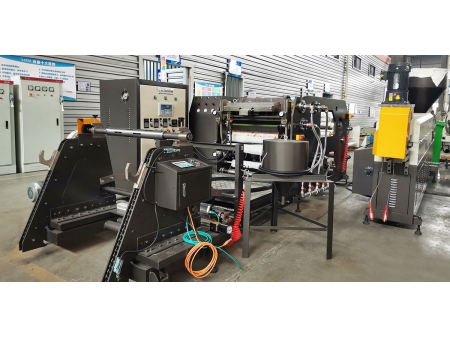

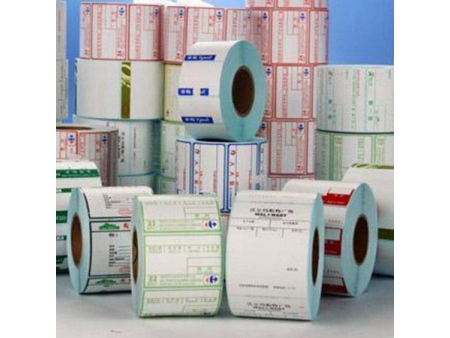

Hot melt adhesive web extrusion coater operates by extruding adhesives through a die onto a moving web or substrate. This process creates a uniform and controlled adhesive layer, preparing the coated web for various applications like labeling, packaging, and laminating.

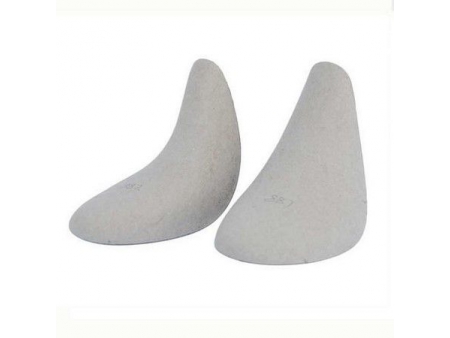

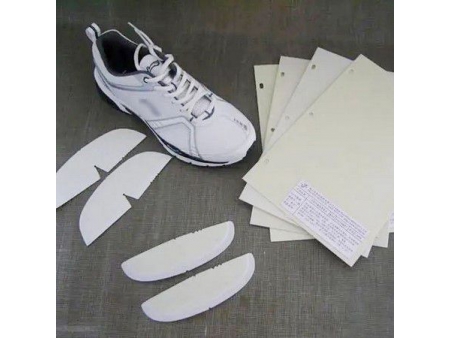

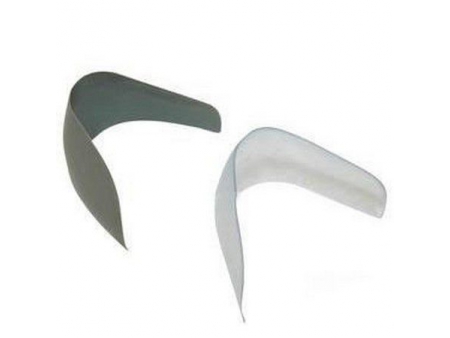

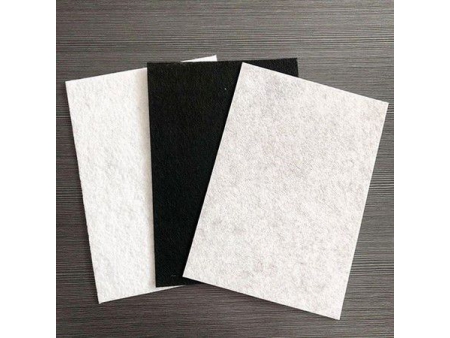

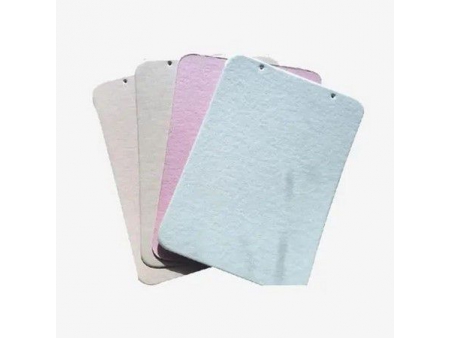

JIAYUAN JYJ hot melt adhesive web extrusion coater utilizes high-viscosity hot melt adhesives or thermoplastic materials, such as PA, PES, PU, EVA, TPU, etc. to perform coating. Especially suitable for handling anticorrosive tape, etc., as well as medium-to-high-temperature shoe chemical sheets including single-sided fine cloth hot melt adhesive sheets, toe puffs, etc.

Specifications

Model	JYJ
Coating Width	400-1600mm
Coating Weight	20-2000g/m²
Coating Speed	50m/min
Unwind Diameter	1000mm
Rewind Diameter	700mm
Web Guide System	1 set
Length	5000mm
Height	1400mm
Power	38-60kW
Power Supply	380v±15% 50Hz

Parameters can be adjusted according to specific customer requirements.

Features

Higher coating precision can be achieved via configuring automatic web change, hot melt adhesive pump and coating head.
Different coating effects can be achieved by replacing the roller; efficient cooling device ensures the coating speed.
