Hot melt coating and lamination machine

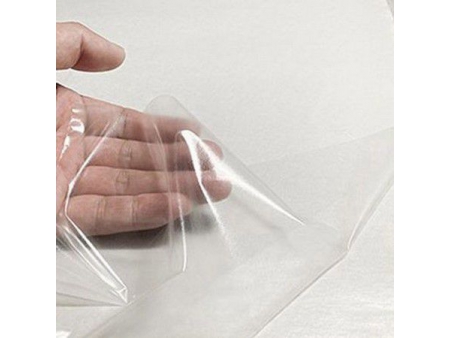

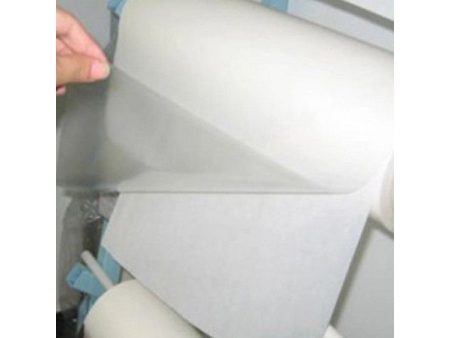

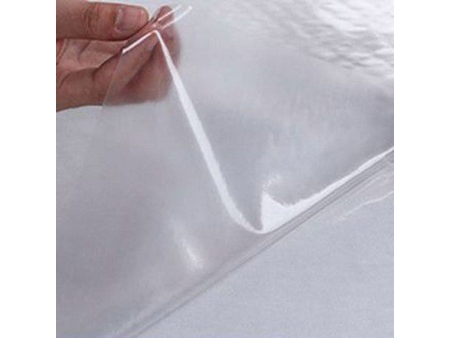

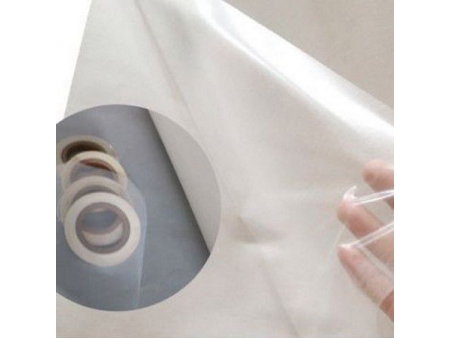

JYJ hot melt adhesive film extrusion coater works well with various high-viscosity hot melt adhesives or thermoplastic materials, such as PA, PES, PU, EVA, TPU, etc. for coating applications. A screw structure ensures continuous and stable adhesive dispensing, both in terms of volume and pressure. Ideal for producing footwear materials, luggage materials, hot melt adhesive film, garment accessories, reflective materials, etc.

Specifications
Model JYJ
Coating Width 400-1600mm
Coating Weight 20-2000g/m²
Coating Speed 50m/min
Unwind Diameter 1000mm
Rewind Diameter 700mm
Web Guide System 1set
Length 5000mm
Height 1400mm
Power 38-60kW
Power Supply 380v±15% 50Hz

Parameters can be adjusted according to specific customer requirements.

Features
  • Higher coating precision can be achieved via configuring automatic web change, hot melt adhesive pump and coating head.
  • Different coating effects can be achieved by replacing the roller; efficient cooling device ensures the coating speed.
  • Suitable adhesive viscosity: 3000-150000cps,
  • Especially suitable for high-viscosity hot melt adhesives such as heat-resistant polyamides, polyesters, etc.
  • Continuous screw adhesive dispensing, good stability in both dispensing volume and pressure. Adhesive dispensing amount varies from 15kg to 1000kg.
