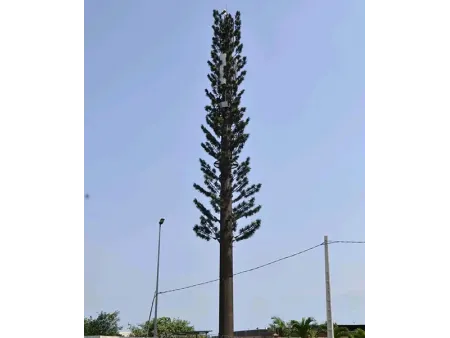

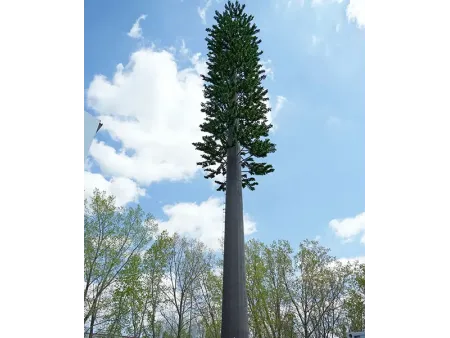

Camouflaged Communication Tower (Pine Tree Tower)
Stealth cell tower disguised to look like a natural pine tree, available in height options from 5 to 40 meters
Pine tree communication towers are designed to imitate the shape of real pine trees, allowing communication base stations to blend naturally into scenic and environmentally sensitive areas where traditional towers are not welcome. Besides supporting telecom signal coverage, they can also be used for environmental monitoring and night lighting. The structure is supported by a self-supporting reinforced concrete foundation, and the outer surface is covered with synthetic tree-bark materials, helping the tower integrate smoothly into the surrounding landscape.
- Design Standard ANSI/TIA-222-G/H/F, EN 1991-1-4, EN 1993-3-1
- Height Range 5–40 m, customized to project requirements
- Design Wind Speed Up to 300 km/h, according to site conditions
- Surface Treatment Hot-dip galvanized
Typical Installation Environments
Pine tree towers are best installed in scenic areas or parks where pine trees are the main type of vegetation, such as forested hillsides and natural parks. The shape and color of the tower are matched as closely as possible to real pine trees, so the structure blends into the environment and does not look out of place.
| Product | Telecommunication tower |
| Tower Type | Self-Supporting Tower |
| Design Standards | ANSI/TIA-222-G/H/F, EN 1991-1-4, EN 1993-3-1 |
| Certification | ISO 9001: 2015; COC; Third Party Inspection Report (SGS, BV) |
| Bolts & Fasteners | Grade 8.8 / 6.8 / 4.8; ASTM A325; DIN 7990, DIN 931, DIN 933; ISO 4032, ISO 4034 |
| Structural Material | Main pole: Steel plates |
| Exterior Finish | Polymer-based simulated bark |
| Leaves Material | PU flame-retardant material |
| Height Range | 5–40 m, customized to project requirements |
| Design Wind Speed | Up to 300 km/h, according to site conditions |
| Surface Treatment | Hot-dip galvanized |
| Galvanizing Standard | ASTM A123 / ISO 1461 |
| Service Life | More than 20 years |
| Color Options | Natural green finish or customized colors |
| Spare Parts | Climbing steps, safety guide cable, anchor bolts and nuts, and all installation accessories |
| Structural Form | Round or polygonal monopole |
| Main Features | Stable monopole structure, round or polygonal section, landscape-friendly design, manufactured under ISO 9001 / ISO 14001 compliance |
| Certification Standard | ||
| Design Standards |
| |
| Structural Steel | ||
| Grade | Mild Steel | High Tensile Steel |
| GB/T 700 – Q235B, Q235C, Q235D | GB/T 1591 – Q355B, Q355C, Q355D, Q420B | |
| ASTM A36 | ASTM A572 Gr.50 | |
| EN 10025 – S235JR, S235J0, S235J2 | EN 10025 – S355JR, S355J0, S355J2 | |
| Design Wind Speed | Up to 300 km/h | |
| Allowable deflection | 0.5–1.0° @ operational speed | |
| Tensile strength (MPa) | 360–510 | 470–630 |
| Yield strength (t ≤ 16 mm) (MPa) | 235 | 355 / 420 |
| Elongation (%) | 20 | 24 |
| Impact strength KV (J) | 27 (20°C) - Q235B (S235JR) | 27 (20°C) - Q355B (S355JR) |
| 27 (0°C) - Q235C (S235J0) | 27 (0°C) - Q355C (S355J0) | |
| 27 (-20°C) - Q235D (S235J2) | 27 (-20°C) - Q355D (S355J2) | |
| Bolts & Nuts | ||
| Grade | Grade 4.8, 6.8, 8.8 | |
| Standards for mechanical properties | ||
| Bolts | ISO 898-1 | |
| Nuts | ISO 898-2 | |
| Washers | ISO 7089 / DIN 125 / DIN 9021 | |
| Standards for dimensions | ||
| Bolts (dimensions) | DIN 7990, DIN 931, DIN 933 | |
| Nuts (dimensions) | ISO 4032, ISO 4034 | |
| Washers (dimensions) | DIN 7989, DIN 127B, ISO 7091 | |
| Welding | ||
| Method | CO₂ Shielded Arc Welding & Submerged Arc Welding (SAW) | |
| Standard | AWS D1.1 | |
| Galvanizing | ||
| Galvanization standard of steel sections | ISO 1461 or ASTM A123/A123M | |
| Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153/A153M | |
Main Components
- Anchor Bolts
- Antenna Mounting Bracket
- Copper Grounding Components
- Connection Plates
- Antenna Mast
Optional Components
- Communication Tower Bolts
- Aviation Obstruction Light
- Climbing Ladder
- Copper Lightning Rod
- Grating Platform and Mesh Platform
We provide full technical guidance and carry out construction based on the approved drawings. If any questions arise, we are always available to assist.
Applications and Durability
Pine tree towers can integrate environmental monitoring sensors, surveillance cameras, and lighting fixtures, suitable for use not only as a communication support but also for safety, monitoring, and night-time illumination in the same location. The tower structure is designed to withstand strong winds, while the camouflage materials offer excellent resistance to aging, UV rays, and temperature fluctuations. This ensures a long-lasting, realistic natural appearance and superior durability while maintaining full communication functionality.
Realistic appearance
The overall shape replicates a real pine tree. The branches and leaves are finely detailed, and the supporting cable frames are hidden inside the structure to avoid affecting the natural look.
Extended functions
Pine tree towers can be equipped with environmental monitoring sensors, security cameras, and lighting systems, allowing them to serve multiple purposes in different application scenarios.
The installation of pine tree towers on site must follow a systematic sequence to ensure their security and appearance. Once everything has been assembled, the installation process should proceed as follows:
Foundation work
The installation process begins with the preparation of the site and the laying of a reinforced concrete foundation in accordance with the approved drawings. In addition to supporting the entire weight of the pine tree tower, the concrete foundation also ensures that it stays steady over time.
On-site assembly
All the components in pine tree towers are delivered to the installation site and assembled on the ground before lifting.
Connection check
Once the main components are assembled, all joints and fasteners are inspected using proper tools to make sure every connection is secure and properly sealed.
Tower lifting
It's necessary to use a crane to lift the assembled pine tree tower and move it into position above the foundation.
Final fixing
The camouflaged tower is precisely placed onto the foundation and secured with anchor bolts and other fastening components.
System installation and testing
After the pine tree tower is in place, the electrical lines and communication systems are connected. All functions are then tested on site to make sure everything is working properly before putting the tower into operation.
Final appearance inspection
In order to ensure the pine tree blends well with the surrounding environment, the branches, leaves, and outer surface are checked and adjusted after installation.
- 30m Pine Tree Tower
- 25m Pine Tree Tower
- 25m Pine Tree Tower
Laser Cutting
Laser cutting is used to shape the steel components through focused beam cutting and assisted gas removal. The process offers fast cutting speed and high dimensional accuracy (up to ±0.05 mm), while keeping heat impact to a minimum. This reduces the risk of deformation and results in clean, well-defined edges.
CNC Punching and Shearing
Steel angles are processed through CNC-controlled punching and shearing lines. Automatic feeding, positioning, punching, and cutting are all integrated into the process, keeping production running smoothly and efficiently. Precise CNC positioning keeps quality consistent, even when working with more complex parts.
Hot-Dip Galvanizing and Surface Protection
The tower is protected with hot-dip galvanizing as the main anti-corrosion treatment, along with an extra plastic coating for added protection. The zinc layer protects the steel from rust and adds strength, while the coating gives extra insulation and surface protection. This combined treatment allows the tower to maintain reliable performance for over 20 years and adapt well to harsh environments such as high and low temperatures, coastal areas, and mountainous regions.
