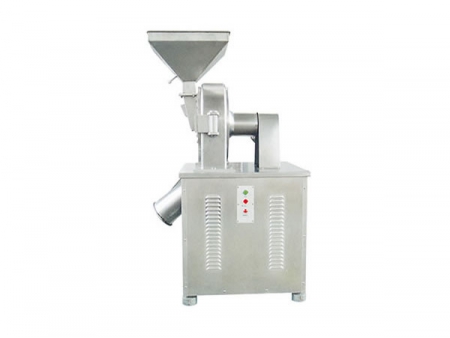

High Effect Industrial Grinder
Request a Quote
The high effect industrial grinder set is extensively used as a grinding line for pharmaceutical, chemical, food and pesticide industries for pulverizing dry brittle materials.
Technical parameters
| Specification | unit | 20B/20Bset | 30B/30Bset | 40B/40Bset | 60B/60Bset |
| productive capacity | (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| speed of main shaft | ( r/min ) | 4500 | 3800 | 3400 | 2800 |
| feeding granule size | ( mm ) | 6 | 10 | 12 | 15 |
| fineness of pulverization | ( mesh ) | 60-150 | 60-120 | 60-120 | 60-120 |
| grinding motor power | ( kw ) | 4 | 5.5 | 11 | 15 |
| fan power | ( kw ) | 1.5 | 1.5 | 1.5 | 2.2 |
| weight | ( kg ) | 250 | 320 | 550 | 680 |
| ( LxWxH ) overall dimension | ( mm ) | 550x600x1250 | 600x700x1450 | 800x900x1550 | 1000x900x1680 |
| ( LxWxH ) overall dimension( set ) | ( mm ) | 1100x600x1650 | 1200x650x1650 | 1350x700x1700 | 1550x1000x1750 |
