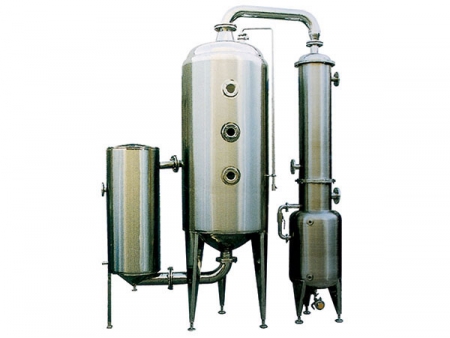

Triple Effect Evaporator

Request a Quote

View All: http://materialdryer.com/1-5-6-triple-effect-evaporator/index.html

Application

The triple effect evaporator uses a tubular circulation heating principle to shorten heating time for rapid evaporation and large concentration ratio, so as to maintain the properties of the raw materials.

Specification

Model/items	Drying capacity	Heat exchanging area (m²)	Condensing area(m²)	Evaporating temperature(℃)			Vacuum degree(MPa)			Dimension
Model/items	H₂O(kg/h)	Heat exchanging area (m²)	Condensing area(m²)	Primary efficiency evaporator	Medium efficiency evaporator	High efficiency evaporator	Primary efficiency evaporator	Medium efficiency evaporator	High efficiency evaporator	(L×W×H)
SZ-500	500	15	7.5	85	75	60	0.02	0.06	0.08	5.9×1.25×2.49
SZ-1000	1000	30	15	85	75	60	0.02	0.06	0.08	6.8×1.45×3.5
SZ-2000	2000	60	30	85	75	60	0.02	0.06	0.08	9.3×1.8×4.2

Features

This concentrator is suitable for the concentration of liquid materials such as Chinese herbal medicine, western medicine, glucose, starch, foodstuffs, dairy products and chemical products. It is especially suitable for thermosensitive materials.
