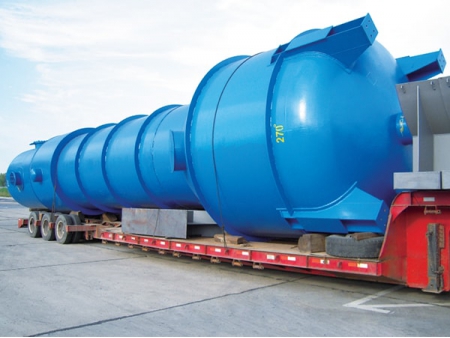

Single Effect Evaporator, Forced Circulation Evaporator
Request a Quote
The single effect evaporator with external circulation features a foam removing system with two-grades and reduces the loss of feed liquid greatly.
Application
This drying equipment is suitable for the evaporation process of liquid materials in industries such as pharmaceuticals, food, chemicals, etc.
Specification
| Items/model | ||||||
| Drying capacity (kg/h) | 350 | 500 | 700 | 1000 | 1500 | 2000 |
| Steam pressure (MPa) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Heating area (m2) | 7 | 8 | 10.5 | 18 | 25 | 35 |
| Condensing area (m2) | 13 | 16 | 20 | 30 | 50 | 70 |
| Cooling area (m2) | 1.5 | 2 | 3 | 5 | 7 | 10 |
| Vacuum degree (MPa) | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
Features

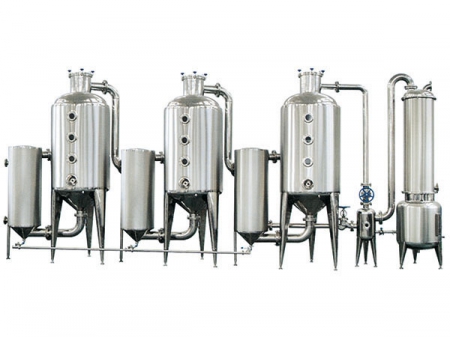

The equipment consists of a tubular external heater, vacuum evaporator and an auxiliary device. It features quick heating time, rapid evaporation and can protect thermosensitive materials.
