8000 Series Aluminum Alloys
Request a Quote

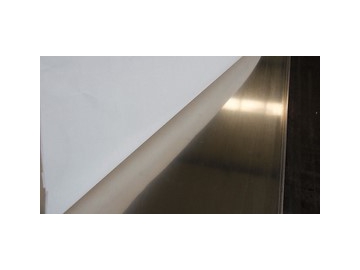

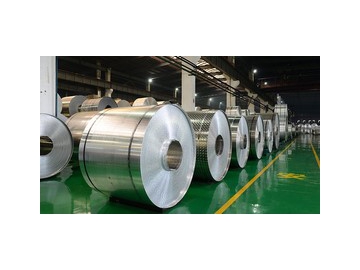

8011 Aluminum Sheets, Plates and Coil
8011 aluminum sheets/plates available size range
- Thickness: 0.2-200mm
- Width: 30-2500mm
- Length:500-13000mm
- Thickness: 0.2-6.35mm
- Width: 500-2500mm
8011 aluminum alloy is a common aluminum alloy with iron and silicone as the main alloying elements. This alloy features excellent surface properties, like wettability, corrosion resistance, etc. It can not be strengthened by heat treatment.
Application8011 aluminum alloy is widely used in sealing packing of cosmetic bottles, beverage bottles and air conditioning aluminum foil, pharmaceutical packaging, food packaging, cable foil, sealing foil, etc., because of its deep drawing performance.
Aluminum alloy state, size and mechanical properties| Alloy | Temper | Thickness (mm) | Tensile strength (Mpa) | Elongation (%) | |
| Chinese standard | Value | ||||
| 8011 | O | ＞0.2-0.50 | - | 80-100 | ≥25 |
| ＞0.5-1.0 | ≥30 | ||||
| ＞1.0-4.5 | ≥32 | ||||
| H22 | ＞0.2-0.50 | - | 100-130 | ≥12 | |
| ＞0.5-1.0 | ≥14 | ||||
| ＞1.0-4.5 | ≥15 | ||||
| H24 | ＞0.2-0.50 | - | 120-150 | ≥4 | |
| ＞0.5-1.0 | ≥5 | ||||
| ＞1.0-4.5 | ≥8 | ||||
| H26 | ＞0.2-0.50 | - | 140-170 | ≥2 | |
| ＞0.5-1.0 | ≥3 | ||||
| ＞1.0-4.5 | ≥4 | ||||
| H18 | ＞0.2-0.50 | ≥185 | ≥1 | ||
| ＞0.5-1.0 | ≥2 | ||||
| ＞1.0-4.5 | - | ≥3 | |||
