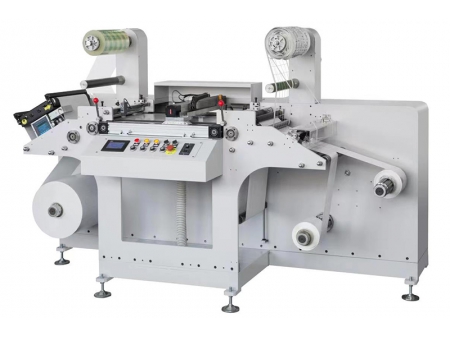

Digital Die Cutting Machine (Model Digi-320 Digital Label Die Cutter)
Digi-320 digital die cutting machine is a comprehensive, all-in-one label finishing solution that combines laminating, die cutting, slitting, and rewinding in a single machine. The traditional label die cutting machines are fast, but the shortage of which is that they need a customized knife template for each design. This digital label die cutting machine was developed in response to solve the challenge, it can directly cut the label with desired shapes by simply importing the design file into the computer, without requiring a cutting die template.
Our digital die cutter machine is equipped with a unique flatbed multi-blade technology, offering high efficiency and supporting flexible label cutting design. In addition, the digital die cutter machine combines functions of laminating, die cutting, slitting, and rewinding in one machine, ideal for a customized label finishing system.
| Max. Unwinding Diameter | 500mm | Die Cutting Speed | 6m/min (depending on label shapes and sizes) |
| Slitting Width | 10-330mm | Slitting Precision | ± 0.1mm |
| Label Range | 10mm | Repeat Positioning Precision | ± 0.1mm |
Digi-320 digital die cutting machine is commonly used for the production of printed labels through die cutting and slitting processes, suitable for making final products including common adhesive labels, wine labels, and food packaging labels.
| Max. Unwinding Diameter | 500mm (outer diameter) |
| Max. Roll Width | 40-350mm |
| Max. Label Width | 350mm |
| Min. Label Length | 10mm |
| Max. Label Length | 400mm |
| Die Cutting Speed | 6m/min (depending on label shapes and sizes) |
| Die Cutting Blades | 2pcs (standard) Max. 4pcs (optional) |
| Slitting Blades | 4pcs (standard) Max. 15pcs (optional) |
| Cutting Tracking | Single mark |
| Die Cutting Blades | Tungsten steel rotary blades |
| Cutting Precision | 0.1mm (duplicate) |
| Max. Slitting Speed | 100m/min |
| Slitting Width | 10-330mm |
| Slitting Precision | 0.1mm |
| Dimensions | 2.4*1.8*1.6m |
| Weight | ±800kg |
| Power | 110-127VAC 50-60HZ, 1000W 220-240VAC 50-60HZ, 1000W |
| Warranty | 1 year (excluding highly consumable parts) |
| Data Connectivity | USB 2.0/Ethernet 10/100 Base-T/GPIO |
| Optional | Additional cutting head Slitting unit Film back liner removal unit Sheet paper cutter |

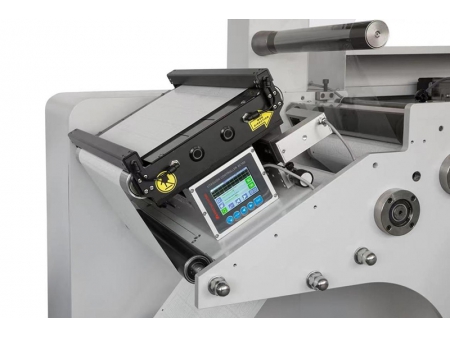

- Web Guide SystemEquipped with a web guide ultrasonic sensor, suitable for the precise alignment of adhesive and transparent labels.
- Die Cutting SystemThe digital label die cutting machine utilizes a servo motor drive with tungsten steel blades, achieving high-speed operations up to 2m/min. Designed with multi-blade, capable of cutting up to 1mm thick materials, offering faster, reliable, and higher-efficiency label processing.
- Waste Removal SystemThe precision machinery design can control the waste roll rewinding uniformly, ensuring clean waste removal without residue on finished labels.
- Slitting SystemAdopts rotary slitting mode, supports up to 15 sets of circular blades, with a high speed of 60m per minute, ensuring higher efficiency compared to traditional label slitting equipment.
- Additional cutting head
- Slitting unit
- Film back liner removal unit
- Sheet paper cutter
