Rotary Die Cutting Machine (Model YMQA-320 Rotary Die Cutter for Label Production)
Request a Quote
YMQA-320 rotary die cutting machine is specially designed for die cutting and slitting blank labels. Engineered for precision and efficiency, this label die cutting machine integrates a web guiding system, automatic meter counting, piece counting, and turret rewinding, ensuring a smooth and easy operation, with a high-efficiency label production process.
Technical Highlights
| Max. Unwinding Diameter | 600mm |
| Die Cutting Speed | 150m/min |
| Slitting Speed | 200m/min |
| Max. Roll Width | 320mm |
Features
- Equipped with an unwind shaft with a limiting baffle to easily fix material in place. Adopting the frame-style web guide system ensures accurate alignment during material transfer with minimal effort and high precision.
- The pressure-adjusting screw design allows pressure fine-tuning without needing to dismantle the die cutter machine’s parts.
- The upper rewinder with turret-style design significantly improves roll change efficiency.
- The rotary die cutter’s transmission system adopts a synchronous belt drive, effectively reducing noise during operation.
- The adoption of magnetic powder brake/clutch tension control for unwind, rewind, and waste collection process ensures smooth and reliable operation.
- Built with automatic consistent tension control for unwinding; and taper tension control at rewinding for various materials.
- Air shaft system with automatic air expansion to firmly hold the core of a roll during unwinding, rewinding, and waste collection for easier and efficient operation.
- The rotary die cutting machine is equipped with a smart control system, which includes automatic counting, length presetting, ultrasonic sensor web guiding, and automatic stop for precise workflow control.
Applications

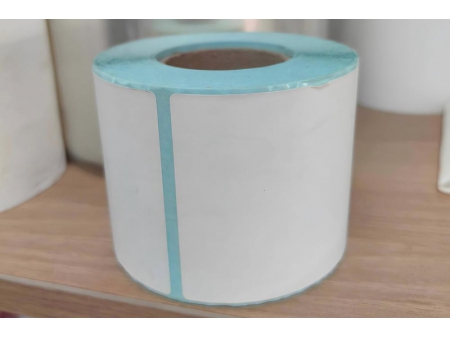

YMQA-320 rotary die cutting machine is ideal for the precise die cutting and slitting of blank label rolls, ensuring high efficiency and stable operation in adhesive label production.
Technical Specifications
| Slitting Speed | 200m/min |
| Die Cutting Speed | 150m/min |
| Circumference of Die Cutting Cylinder | 200-500mm |
| Max. Roll Width | 320mm |
| Max. Unwinding Diameter | 600mm |
| Max. Rewinding Diameter | Upper: 300mm (turret rewinder) Lower: 600mm |
| Dimensions (L*W*H) | 1900*900*1435mm |
| Weight | 1000kg |
| Power Supply | AC380V, 3 phase |
| Power | 4kW |
Main Components

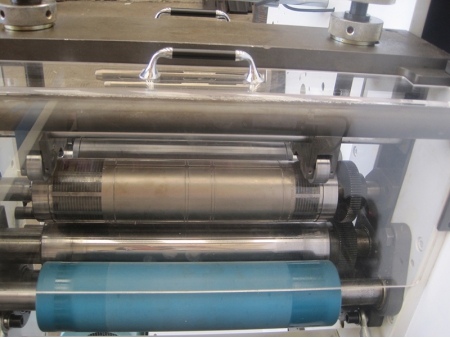

- Rotary die cutting station
- Slitting unit comes standard with circular knives, with the option of razor blades
- Upper turret rewinder and lower single rewinder. The turret rewinder fits 1-inch and 1.5-inch air shafts for small roll rewinding, and a web guide from right to left for convenient operation.
