Explosion-Proof Oil-Cooled Motorized Pulley (Ø400-630mm)

Explosion-Proof Oil-Cooled Motorized Pulley (Ø400-630mm)
Explosion-Proof Oil-Cooled Motorized Pulley (Ø400-630mm)
Explosion-Proof Oil-Cooled Motorized Pulley (Ø400-630mm)
Explosion-Proof Oil-Cooled Motorized Pulley (Ø400-630mm)
Request a Quote
YDB

Drum motor used in belt conveyors for bulk handling

  • Belt conveyor for tunnel boring machine
  • Scraper conveyor

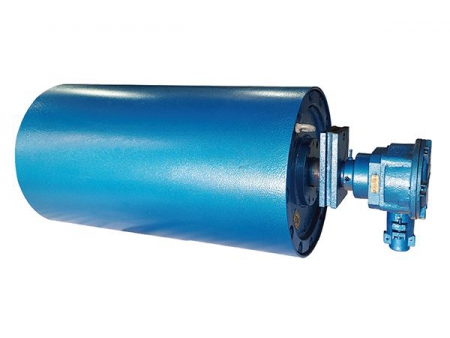

YDB explosion-proof oil-cooled motorized pulley is suitable for places in coal mines (non-mining working faces) that contain explosive gas mixtures. As a new type of driving device for belt conveyors, this drum motor has significant advantages compared to the drive device in the form of explosion-proof motor reducer transmission drum.

Applications

Places in coal mines (non-mining working faces) that contain explosive gas mixtures.

Features

Compact structure, safe installation, and convenient operation.

Technical Data
Drum Diameter
D mm
Power
P kW
Belt Width
B mm
Belt Speed
V m/s
Rated Voltage
U V
Ø400 4 650, 800 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 380/660, 660/1140
5.5 650, 800 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 380/660, 660/1140
7.5 650, 800 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 380/660, 660/1140
11 800, 1000 1.25, 1.6, 2.0, 2.5 380/660, 660/1140
15 800, 1000 2.0, 2.5 380/660, 660/1140
Ø500 5.5 650, 800, 1000, 1200, 1400 0.25, 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0 380/660, 660/1140
7.5 650, 800, 1000, 1200, 1400 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15 380/660, 660/1140
11 650, 800, 1000, 1200, 1400 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15 380/660, 660/1140
15 650, 800, 1000, 1200, 1400 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15 380/660, 660/1140
18.5 800, 1000, 1200, 1400 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15 380/660, 660/1140
22 800, 1000, 1200, 1400 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15 380/660, 660/1140
Ø630 5.5 650, 800, 1000, 1200, 1400 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 380/660, 660/1140
7.5 650, 800, 1000, 1200, 1400 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0 380/660, 660/1140
11 650, 800, 1000, 1200, 1400 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0 380/660, 660/1140
15 650, 800, 1000, 1200, 1400 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0 380/660, 660/1140
18.5 800, 1000, 1200, 1400 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0 380/660, 660/1140
22 800, 1000, 1200, 1400 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0 380/660, 660/1140
30 800, 1000, 1200, 1400, 1600 1.25, 1.6, 2.0, 2.5, 3.15 380/660, 660/1140
37 800, 1000, 1200, 1400, 1600 1.25, 1.6, 2.0, 2.5, 3.15 380/660, 660/1140
45 800, 1000, 1200, 1400, 1600 1.6, 2.0, 2.5, 3.15 380/660, 660/1140
