JTD

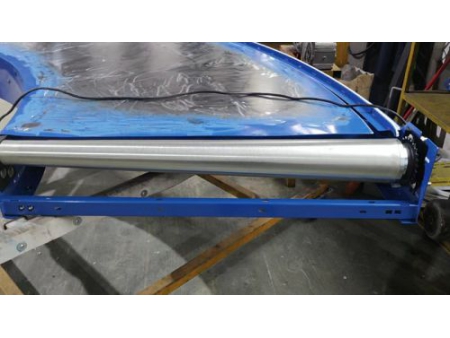

Conical motorized drum used in belt conveyors for unit handling

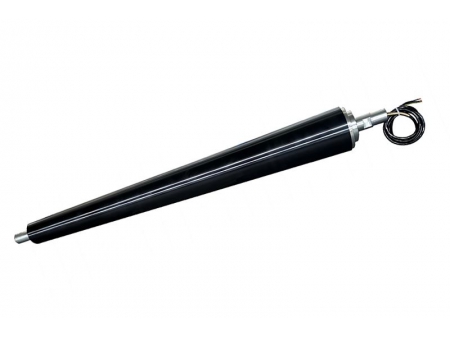

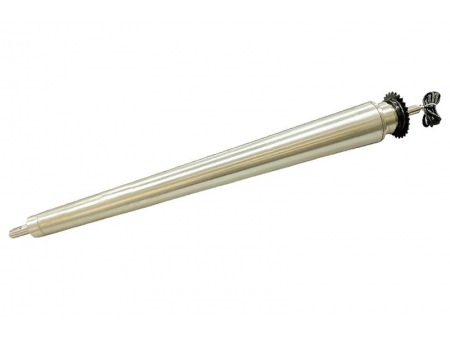

JTD conical permanent magnet motorized pulley is composed of a motor, reducer, conical drum, and sprocket.

Applications

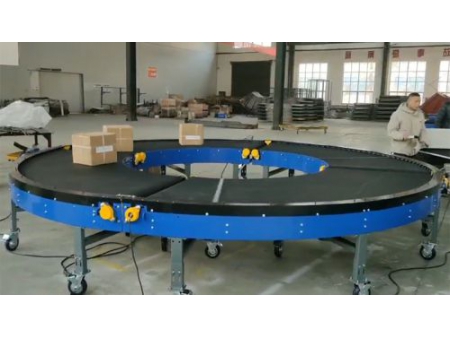

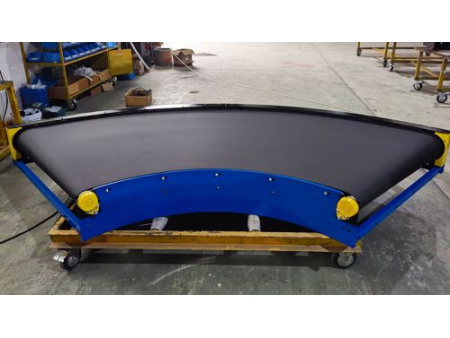

Conical permanent magnet motorized pulley is widely used in curved conveyor equipment in industries such as e-commerce, postal services, food, pharmaceuticals, tobacco, tires, and papermaking.

Features

This conical motorized drum is characterized by high efficiency, small size, light weight, low noise, long service life, and a wide range of speeds.

Technical Data
Drum Diameter
mm
Rated torque
N·m
Belt width
B mm
Middle Diameter
mm
Rated power of corresponding belt speed
(m/s) kW
0.8 1.0 1.25 1.6 2.0
Ø129 40 1000 100 0.55 0.75 0.9 1.2 1.5
Ø193 90 1200 138 1.2 1.5 1.8 2.4 3.0
Ø213 95 1400 150 1.2 1.5 1.8 2.4 3.0

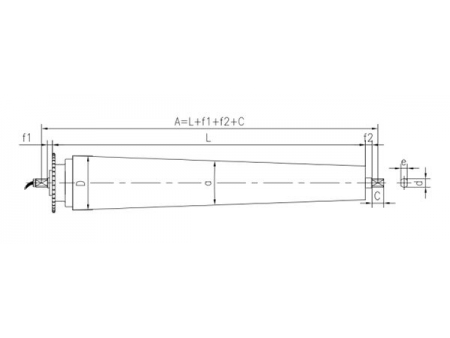

D L f1 f2 c d e a Sprocket wheel
Ø129 1100 21.5 21.5 43.5 30 22 3.4 10A-Z27
Ø193 1300 21.5 21.5 43.5 30 22 4.8 10A-Z40
Ø213 1500 21.5 21.5 43.5 30 22 4.9 10A-Z44
