Hot Melt Coater for Elastic Bandage (RTB200 Series)
Request a Quote

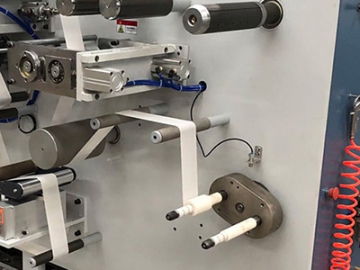

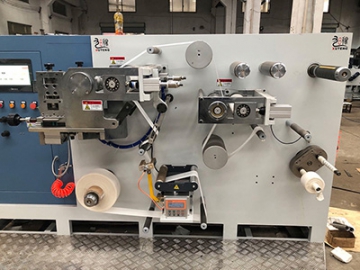

RTB200 series hot melt coater is type of roll coating equipment which is specially designed for the manufacture of elastic bandages.
Features
- Featuring with compact size and easy operation, the hot melt coating machine is designed with a coating width up to 200mm, which is an ideal hot melt coating machine for elastic bandages with narrow web.
- Partial or full coating is realized by utilizing transfer coating; Coating weight can be freely adjusted to meet different application needs.
- With high coating stability, roll coating with zero tension is suitable for the coating of elastic substrates featuring no stretch and deformation.
- An automatic web guiding system provides smooth material feeding.
- Coating technique can be customized according to customer needs.
Technical Parameters
| Model | RTB |
| Length | 2100mm |
| Width | 950mm |
| Height | 1300mm |
| Width of All Rolls | 240mm |
| Max. Coating Width | 200mm |
| Max. Substrate Diameter | 400mm |
| Diameter of Paper Core | 76mm |
| Unwinding Unit | 2sets |
| Rewinding Unit | 1sets |
| Coating Weight | 15-120g/m² |
| Max. Coating Speed | 30m/min |
