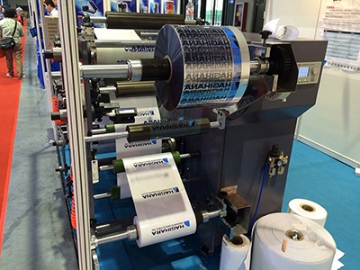

Narrow Web Hot Melt Coater, 100M/min (RT350 Series)
Request a Quote
The narrow web hot melt coater is a type of coating machinery used for the manufacture of self-adhesive labels, medical tapes, Anti-counterfeit tags and labels, etc.
Features
- The narrow web coating equipment features a PLC control system with touch screen HMI, realizing easy operation and high automation.
- Wear resistant alloy steel coating head is utilized, featuring long service life and high coating precision; High accuracy positioning is reached due to the free adjustable coating head.
- An automatic tension control system is equipped on the rewind/unwind unit, ensuring constant tension during the rewind/unwind process.
- A web guiding system is used to provide smooth coating.
- The adhesive amount supplied is controlled by the metering pump, allowing for precise control.
Technical Parameters
| Model | RT350 |
| Max. Coating Width | 350mm |
| Diameter of All Rolls | 400mm |
| Coating Weight | 15-200g/m |
| Max. Coating Speed | 100m/min |
| Unwind Roll Diameter | 600mm |
| Rewind Roll Diameter | 500mm |
| Unwinding Unit | 2 sets |
| Rewinding Unit | 1 set |
| Machine Dimensions | 2200*1300*950 |
