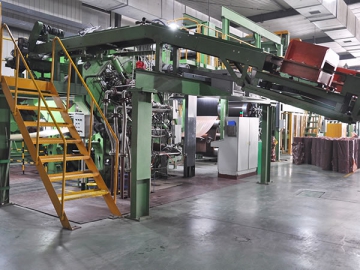

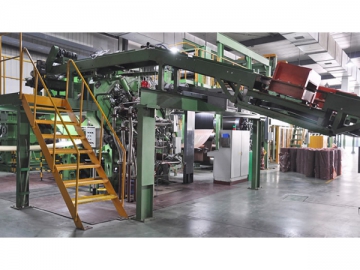

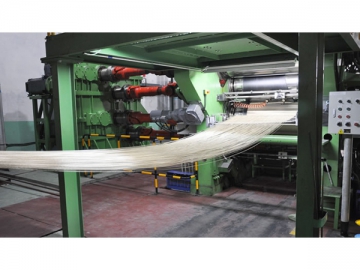

Steel Cord Calender Line

Steel Cord Calender Line
Steel Cord Calender Line
Steel Cord Calender Line
Steel Cord Calender Line
Request a Quote
Specifications
Maximum Width of Steel Cord (mm) 1,000
Roller Diameter (mm) 550
Working Section Length of Roller (mm) 1,300
Number of Roller 4
Roller Arrangement S pattern (Both upper and lower rollers tilt 45 degrees)
Roller Surface Speed (m/min) 4-40
Speed Ratio Between Rollers (Each roller is driven separately by a DC motor) adjustable
Distance between Stock Guides (mm) 850-1,100
Maximum Cord Storage Capacity (m) 40
Cutting Mode Pneumatically
