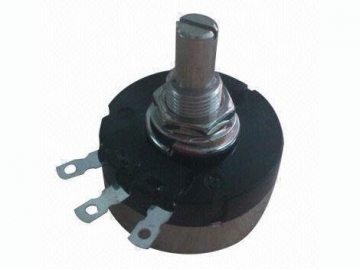

30mm Size Metal Round Shaft Rotary Potentiometer, RV30 Series
Request a Quote
Part Number
RV30
The 30mm single-unit type metal shaft potentiometer provides a good operational feeling. These potentiometers are best suited for application in welding machines, medical equipment, machine controllers, and military equipment.
Parameters
| Diameters | 30mm |
| Total rotational angle | 300°±10° |
| Rotational torque | 10~200gf.cm |
| Stopper strength | ≥4kgf |
| Number of resistor elements | single-unit |
| Total resistance | 50Ω-2MΩ |
| Resistance tolerance | ±10% |
| Shaft Types | round shaft |
| Element | carbon film |
| Rated power | ≤1W |
| Voltage proof | 500V AC for 1 minute |
| Operating life | ≥10000cycles |
Dimensions
