Request a Quote
  • Vibratory feeder
  • Working platform
  • Z-shaped elevating conveyor
  • 14 heads weigher
  • Diverter chute

The cup filling and capping line with an automatic weighing system is composed of a vibratory feeder, working platform, Z-shaped elevating conveyor, 14 heads weigher and diverter chute in order to carry out an accurate filling and fully automatic capping and packing of 2 cups in 1 mold, 3 cups in 1 mold, 4 cups in 1 mold, 5 cups in 1 mold, 6 cups in 1 mold, 8 cups in 1 mold and 10 cups in 1 mold.

Range of application
Applicable products: All types of granules, pieces, strips, round or irregular shaped products such as candies, sees, snacks, pet foods, rubber parts and more.
Cup types
Cup filling and capping line solutions
Model series Standard configuration Maximum cup filling and capping speed (cup/min) Maximum cup weight
2 cups in 1 mold Single 14 heads weigher 80c/min 800g
3 cups in 1 mold Single 14 heads weigher 80c/min 800g
4 cups in 1 mold Two 14 heads weigher 140c/min 800g
5 cups in 1 mold Two 14 heads weigher 140c/min 800g
6 cups in 1 mold Two 14 heads weigher 140c/min 800g
8 cups in 1 mold Four 14 heads weigher 280c/min 800g
10 cups in 1 mold Four 14 heads weigher 280c/min 800g
Note: Kenwei provides custom cup filling and capping lines for customers with specific requirements.
Selective assembly equipment

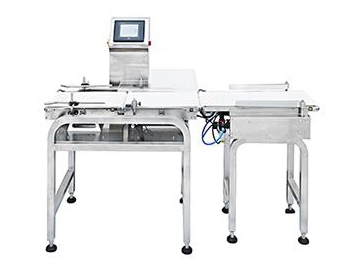

  • Check weigher

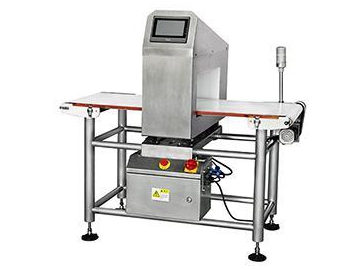

  • Metal Detectors

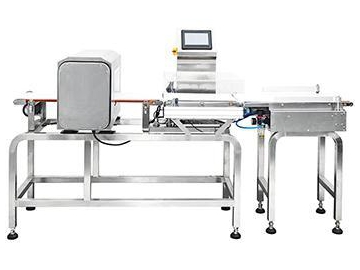

  • Combined metal detector and check weigher
Other equipment

Inserting equipment: Designed to insert small bags of sorbent, desiccant, seasoning mix and more.
Capping device: Add caps to sealed cups- users can choose to add caps individually, or add cap with spoons, seasoning mix bags or other options.
Labeling machine: Attach labels on the cup, you can choose to stick on one side, double sides, circular or other forms.
Diverter chute: Fill your products in multiple dispersing spouts to be ready for more than 1 cup filling, use the 2 cups in 1 mold if you are filling 2 cups at the same time; use 4 in 1 mold if you are filling 4 cups a time, and so on.
