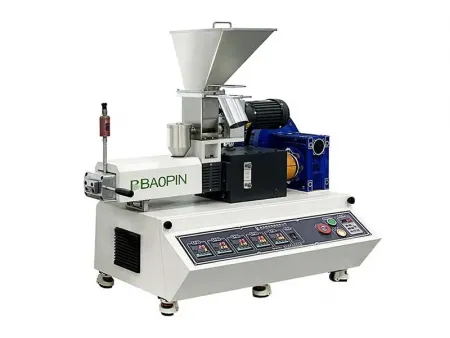

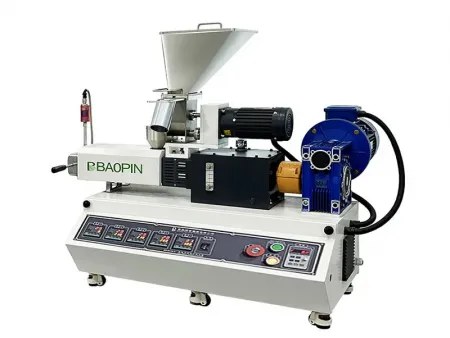

BP-8177-AT Benchtop Laboratory Twin Screw Extruder
Request a Quote
Laboratory extruders for product development, material samplings and small batch production
- Instrument control
- Screw diameter: 20mm (others on request)
- L/D ratio: 25:1
The benchtop laboratory twin screw extruder offers a temperature control range of up to 300℃ and utilizes variable frequency speed control technology. With a screw diameter of 20mm and an adjustable speed of up to 300rpm or higher, it can accommodate a variety of processing needs. The screw shafts are made from 40CrNiMoA chromium-molybdenum alloy tool steel, ensuring high hardness and wear resistance for long-lasting, stable performance.
Streamline your research and production with the benchtop laboratory twin screw extruder, designed for precision and flexibility.
Applications
The benchtop laboratory twin screw extruder is widely used for:
- Small batch mixing and modification of plastics, modified plastics, masterbatches, and additives
- Research and development of new polymer materials
- Experimental testing for material properties and formulations
- Small-scale production for lab-scale manufacturing needs
Technical Data
- Output
Depending on raw material and process formula - Temperature range
Room temperature to 300℃ - Screw diameter
20mm (others on request) - L/D ratio
25:1 - Screw rotating direction
co-rotating parallel (two screws rotate in the same direction) - Rotor speed
0-300rpm, frequency converter speed regulation - Screw Material
The mandrel is made of 40CrNiMoA chromium-molybdenum alloy tool steel, and the threaded components are made of W6Mo5CR4V2 wear-resistant alloy steel with a hardness of HRC60. The screw features conveying blocks, mixing blocks, shearing blocks, banburying blocks, kneading blocks, countercurrent blocks, and other modular components. The mandrel is gradually splined and can be customized and combined according to any material ratio to meet the requirements of different extrusion processes. - Power supply
AC380V, 50Hz, 3-phase 5-wire - Dimensions (W×D×H)
1390×820×1120mm - Weight
approx. 215kg
