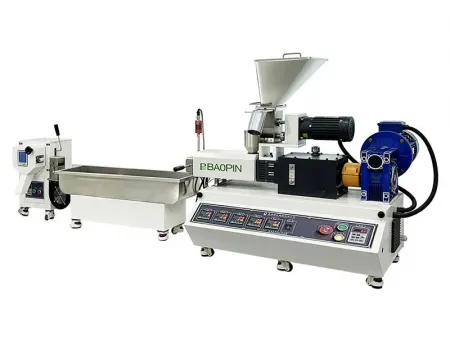

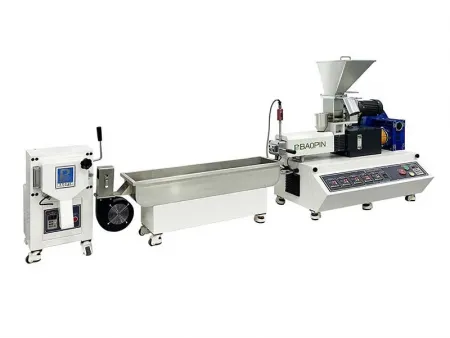

BP-8177-ZT Benchtop Laboratory Twin Screw Pelletizing Line
Laboratory pelletizer with twin screw extruder for the production of extruded pellets (granules) from plastic materials
- Instrument control
- Screw diameter: 20mm (others on request)
- L/D ratio: 25:1
- Cutting speed: 1-20kg/h adjustable
The benchtop laboratory twin screw pelletizing line combines a twin screw extruder, water tank, and pelletizer, designed for efficient processing of small batch materials. This equipment is perfect for mixing, dispersing, plastifying, coloring, and filling modification. The twin screw extruder has a temperature range of up to 300℃, a screw diameter of 20mm, and an l/d ratio of 1:25, with variable screw speed for optimized material processing. The digital control system meets ce and higher standards, ensuring stable equipment performance.
Take control of your material processing with precision! Discover how the benchtop laboratory twin screw pelletizing line can support your small-batch production and r&d needs.
Applications
The benchtop laboratory twin screw pelletizing line is ideal for:
- Plastic modification and masterbatch production
- Coloring, filling modification, and small-scale testing
- Recycling and reprocessing of waste plastics
Twin Screw Extruder
- Output
Depending on raw material and process formula - Temperature range
Room temperature to 300℃ - Screw diameter
20mm (others on request) - L/D ratio
25:1 - Screw rotating direction
co-rotating parallel (two screws rotate in the same direction) - Rotor speed
0-300rpm, frequency converter speed regulation - Power supply
AC380V, 50Hz, 3-phase 5-wire
Water Bath
- Material
304 stainless steel - Level control
Stainless steel water level control valve - Dimensions (W×D×H)
1250×350×500mm - Weight
28kg
Strand Pelletizer
- Number of strands
3 - Cutting speed
1-20kg/h (adjustable) - Cutter material
high-speed alloy steel - Power supply
AC380V, 10A, 3 phase - Dimensions (W×D×H)
420×670×665mm - Weight
125kg
