Request a Quote

Specifications
Model Z100D550-24A1-30S Brush Life 1200h
Rated Voltage 25V DC Electrical Strength 660V/S
Rated Power 550W Insulation Class F
Rated Current 30A±10% Protection Grade IP20
Rated Speed 3000rpm±10% Gearhead Model ZD-ZH180-25-001
Rated Torque 1.75N.m Gear Ratio 25K/17K
No-load Current ≤6A Brake Voltage 24V DC
No-load Speed 3500rpm±10% Brake Torque 6N.m
Work Duty S2(45min) Ambient Temperature -10℃~ 40℃
Insulation Resistance >20MΩ Noise < 60

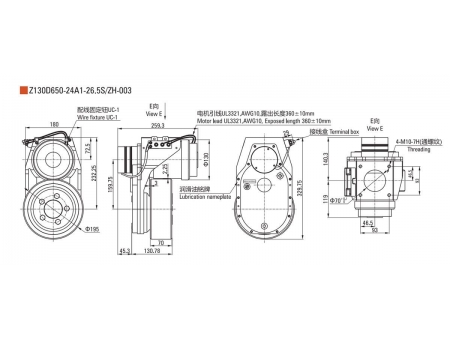

Specifications
Model Z130D650-24A1-26.5S Brush Life 1200h
Rated Voltage 24V DC Electrical Strength 660V/S
Rated Power 650W Insulation Class F
Rated Current 38A±10% Protection Grade IP20
Rated Speed 2650±10% Gearhead Model ZD-003
Rated Torque 2.34N.m Gear Ratio 25K
No-load Current ≤11A Brake Voltage 24V DC
No-load Speed 3000rpm±10% Brake Torque 6N.m
Work Duty S2(60min) Ambient Temperature -10℃~ 40℃
Insulation Resistance >20MΩ Noise <60dB(A) (L=100cm)

Specifications
Model ZDO-750W-S16V Protection Grade IP42
Power 0.75W Insulation Class F
Voltage 16V Gearhead Model NL24.68KL
Frequency 90Hz Gear Ratio 24.685K/17K
Current 41A Brake Voltage 48V DC
Speed 2560r/min Brake Torque 8.0N.m
Work Duty S2-60min Ambient Temperature -10℃~ 40℃
Noise < 68dm(L=100cm)

Specifications

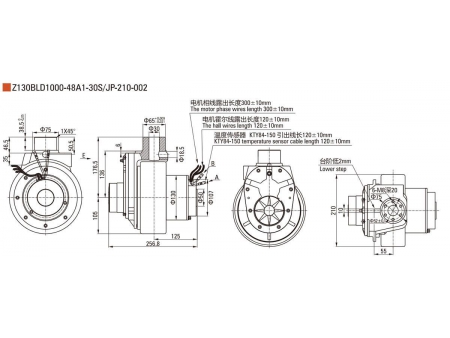

Model Z130BLD1000-48A1-30S Brush Life 5000h
Rated Voltage 48V DC Electrical Strength 660V/S
Rated Power 1000W Insulation Class B
Rated Current 28A±10% Protection Grade IP44
Rated Speed 3000rpm±10% Gearhead Model JP-210-002
Rated Torque 3.18N.m Gear Ratio 24.685K/17K
No-load Current ≤6A Brake Voltage 48V DC
No-load Speed 3800rpm±10% Brake Torque 8N.m
Work Duty S2(60min) Ambient Temperature -10℃~ 40℃
Insulation Resistance >20MΩ Noise <60dB(A) (L=100cm)

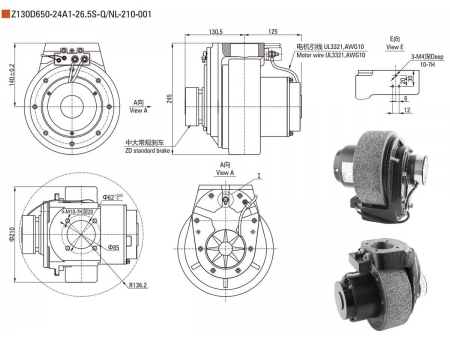

Specifications
Model Z130D650-24A1-26.5S-Q Brush Life 1200h
Rated Voltage 24V DC Electrical Strength 660V/S
Rated Power 650W Insulation Class F
Rated Current 38A±10% Protection Grade IP44
Rated Speed 2650rpm±10% Gearhead Model NL-210-001
Rated Torque 2.34N.m Gear Ratio 24.685K/17K
No-load Current ≤11A Brake Voltage 24V DC
No-load Speed 3100rpm±10% Brake Torque 6N.m
Work Duty S2(45min) Ambient Temperature -10℃~ 40℃
Insulation Resistance >20MΩ Noise < 65dm(A)(L=100cm)

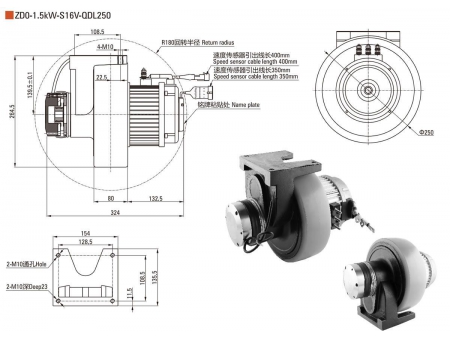

Specifications
Model ZD0-1.5KW-S16V/-QDL250 Protection Grade IP42
Power 1500W Insulation Class F
Voltage 16V/33V Gearhead Model ZH.001
Frequency 85Hz Gear Ratio 31.428K
Current 65A/33A Brake Voltage 24V DC/48V DC
Speed 2250r/min Brake Torque 10.0N.m
Work Duty S2-60min Ambient Temperature -10℃~ 40℃
Noise < 68dm(L=100cm)

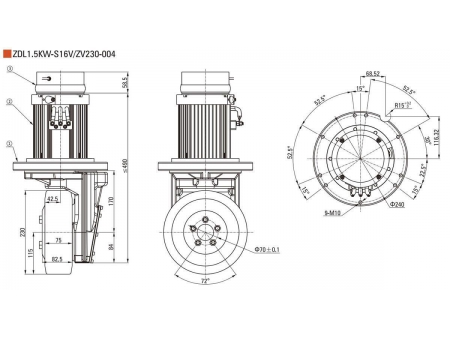

Specifications
Geared Drive Wheel Specifications
Model ZV-230-004
Ratio 21.5K/25.59K
Wheel Diameter 230mm
Rated Load of Gearbox 1300kg
Output Torque of Drive Wheel 96.3N.m/114.6 N.m
Steering Non-driven steering
Gearbox Motor Specifications
Model ZDL-1.5KW-S16V
Rated Voltage 16V/90Hz AC(controller 24V DC)
Rated Power 1.5KW
Rated Current 76A
Rated Speed 2590rpm
Rated Torque 5.5 N.m
Work Duty S2-60min
Insulation Class F
Protection Grade IP42
Ambient Temperature -10℃~ 40℃
Noise < 75dm(L=100cm)
Temperature Sensor KTY84-150 black AMP two core terminal seat
Encoder 48 bites black AMP four core terminal seat
Brake Specifications
Model CDC-C10(24V15)16G
Rated Voltage 24V DC
Rated Power 30W
Brake Torque 16N.m
Release Voltage >1.5V DC
Clutch Voltage < 16.8V DC

Specifications
Model ZD-CDY20190114001 Brush Life 2000h
Rated Voltage 24V DC Electrical Strength 660V/S
Rated Power 400W Insulation Class B
Rated Current 24A±10% Protection Grade IP20
Rated Speed 3000rpm±10% Gearbox Specification 82PN33.92K
Rated Torque 1.27N.m Reduction Stage 2
No-load Current ≤3.5A Output Shaft Rotation Direction of Gearbox and Motor same
No-load Speed 3600rpm±10% Encoder 64-bit
Work Duty S2(10min) Gearbox Structure Integrated
Insulation Resistance >20MΩ Transmission Efficiency 81%

Specifications

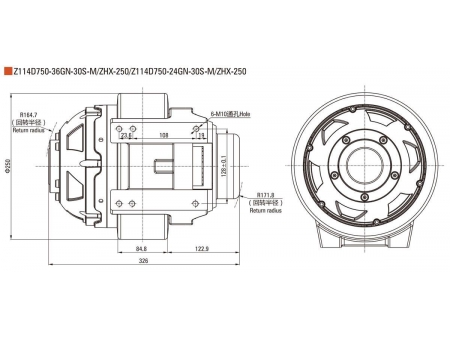

Model Z114D750-36GN-30S/Z114D-750-24GN-30S-M Brush Life 1200h
Rated Voltage 36V DC/24V DC Electrical Strength 660V/S
Rated Power 750W Insulation Class B
Rated Current 28V/42A±10% Protection Grade IP20
Rated Speed 3000rpm±10% Gearhead Model ZHX-250-001
Rated Torque 2.39N.m Gear Ratio 22K
No-load Current ≤5A/7.5A Brake Voltage 36V DC/24 V DC
No-load Speed 3500rpm±10% Brake Torque 6N.m/8 N.m
Work Duty S2(45min) Ambient Temperature -10℃~ 40℃
Insulation Resistance >20MΩ Noise <60dB(A) (L=100cm)
