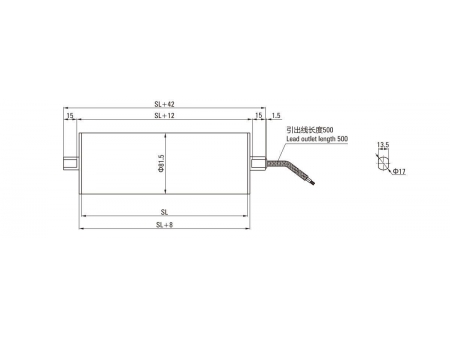

DM80 AC Drum Motor

Request a Quote

View All: http://zd-drivers.com/4-2-3-ac-drum-motor.html

Specifications

Rated Power W	Number of Stage	Gear Box Series	Gear Ratio	Max. Speed m/min	Rated Speed RPM	Rated Torque Nm	Traction N	Length mm
0.09	2	1	3.6500	175.370	684.9	1.10	27	350
			5.3600	119.422	466.4	1.60	40	350
			6.5500	97.725	381.7	1.90	49	350
			8.6300	74.171	289.7	2.60	64	350
		2	13.530	47.310	184.8	3.60	91	380
			18.920	33.832	132.1	5.10	127	380
			24.650	25.968	101.4	6.60	165	380
			28.050	22.820	89.10	7.50	188	380
			33.920	18.871	73.70	9.10	227	380
			44.690	14.323	55.90	12.0	299	380
			58.220	10.994	42.90	15.6	390	380
		3	67.080	9.542	37.30	16.2	405	400
			81.110	7.892	30.80	19.6	489	400
			91.360	7.006	27.40	22.0	551	400
			102.88	6.222	24.30	24.8	621	400
			118.98	5.380	21.00	28.7	718	400
			127.74	5.011	19.60	30.8	771	400
			145.36	4.404	17.20	35.1	877	400
			165.64	3.864	15.10	40.0	999	400
			191.56	3.342	13.10	46.2	1156	400
			231.61	2.764	10.80	55.9	1397	400
0.12	2	1	3.6500	175.370	684.9	1.40	36	350
			5.3600	119.422	466.4	2.10	53	350
			6.5500	97.725	381.7	2.60	65	350
			8.6300	74.171	289.7	3.40	86	350
		2	13.530	47.310	184.8	4.80	121	380
			18.920	33.832	132.1	6.80	169	380
			24.650	25.968	101.4	8.80	220	380
			28.050	22.820	89.10	10.0	250	380
			33.920	18.871	73.70	12.1	303	380
			44.690	14.323	55.90	16.0	399	380
			58.220	10.994	42.90	20.8	520	380
		3	67.080	9.542	37.30	21.6	540	400
			81.110	7.892	30.80	26.1	652	400
			91.360	7.006	27.40	29.4	735	400
			102.88	6.222	24.30	33.1	828	400
			118.98	5.380	21.00	38.3	957	400
			127.74	5.011	19.60	41.1	1028	400
			145.36	4.404	17.20	46.8	1169	400
			165.64	3.864	15.10	53.3	1332	400
			191.56	3.342	13.10	61.6	1541	400
			231.61	2.764	10.80	74.5	1863	400
