Model SDLB1200-2000

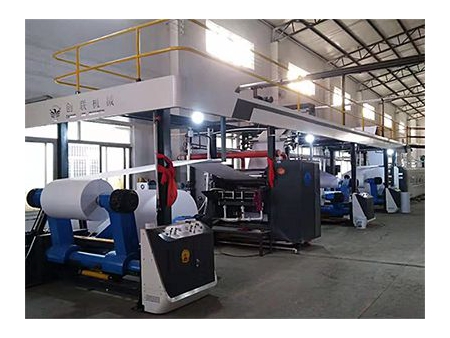

The three layer corrugated paperboard production line is an economical and modernized corrugated board continuous auto-production line, designed and made by absorbing advanced technology and experiences both inside and outside China. Its construction has been simplified into 7 sets of a single machine which are paper unwinding unit, pre heating unit, corrugation making unit, heating unit, paper feeding bridge, paper slitting and sheeting unit, and material stacker. The line is characterized by its reasonable construction and advanced technology.

Technical Specifications of the Three Layer Corrugated Paperboard Production Line
Width of paper used 1300 mm and 1600mm
Flute type UV/A B C E
Speed 20m/min.
Paper cutting range 2.5mm
Glue Corn or starch glue
Heating type Electricity, conducting oil, or steam
Total voltage Quartz pipe 180K 190V
Speed adjusting motor One set of 4kw and one set of 11kw
Power source 3 phases, 4lines 380V 50hz
Machine weight About 15000kg
Machine dimension 2700 × 2300 × 2400mm
Features
  • The three layer corrugated paperboard production line has a novel structure and minor volume.
  • It is convenient to install.
  • The paperboard is compounded by it without grip trace, quick speed, lower noise, high finished product hardness, smooth and no bending, and short time of waiting for model cutting.

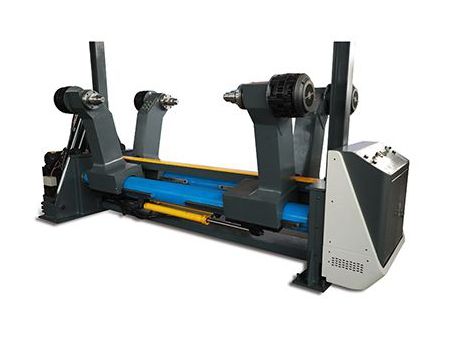

  • Hydraulic Shaftless Reel Stand

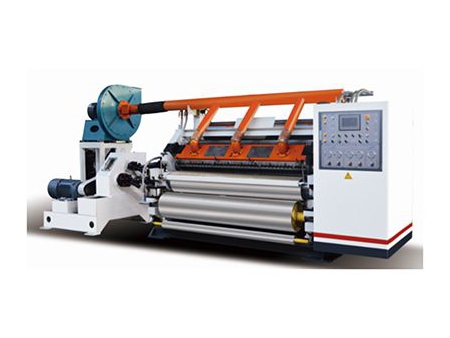

  • External Single Facer Corrugation Machine ( with tungsten carbide roller)
  • Heavy Transporter Over Bridge
  • Double Coating Machine
  • Double Facer Corrugation Machine
  • Computer-controlled Horizontal Rotary Cutter
  • Stacker

As a three layer corrugated paperboard production line manufacturer based in China, we also offer corrugated paper laminating machine, label PS offset printing machine, label and paper rotary die cutting and slitting machine, and more.

At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
