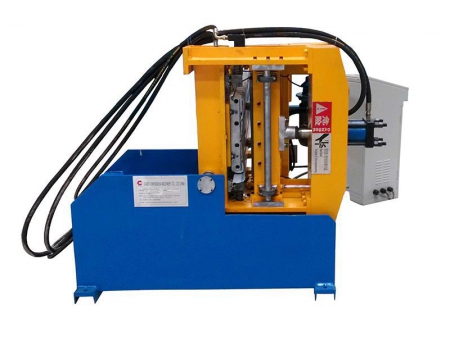

YX65-400-433 standing seam crimping curving machine is capable of crimping and curving operations of aluminum and steel panel. PLC control system is adopted for automatic production. Available min. convex crimping curved radius is 1m.
Thickness for aluminum panel: 0.9-1.2mm
Thickness for steel panel: 0.55-0.8mm

Samples

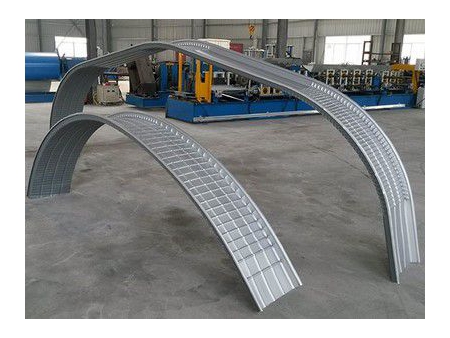

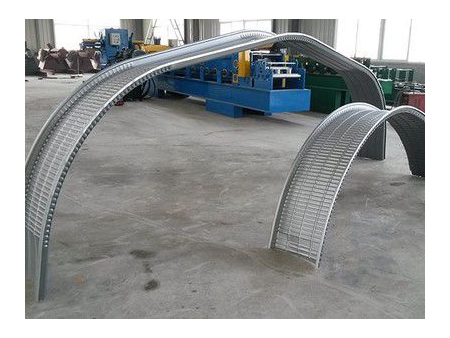

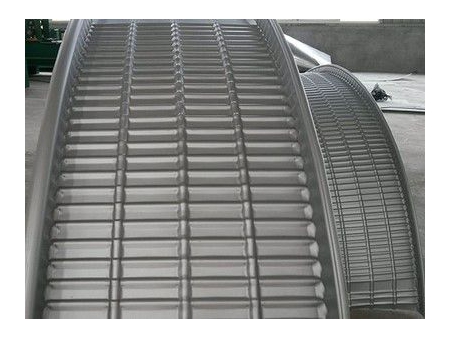

Sample for crimping curving standing seam roofing

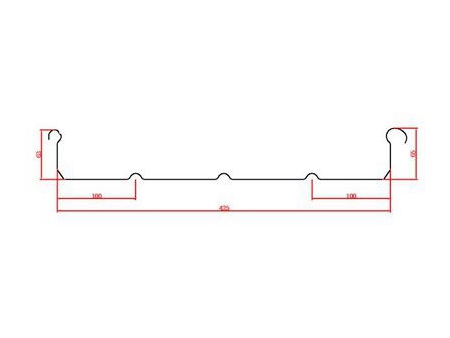

Profiles
Specifications
Model YX65-400-425
Dimension 1500*900*1500mm
Hydraulic Motor Power 5.5kW
Forming Speed 3-8m/min
Voltage 380V/50HZ/3PH
Width of Straight Roofing to Curved 400mm, 433mm
Min. Convex Crimping Curved Radius 1m
Thickness for Aluminum Roof 0.9-1.2mm
Thickness for Steel Roof 0.55-0.8mm
Control System PLC Control
Main Accessories
  • Main curving machine
  • PLC computer controlling system with touch screen (Brand: Schneider)
  • Tools
  • Operation Manual

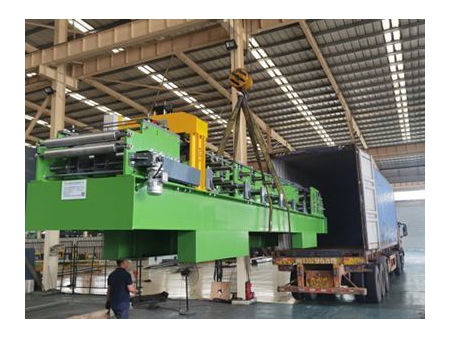

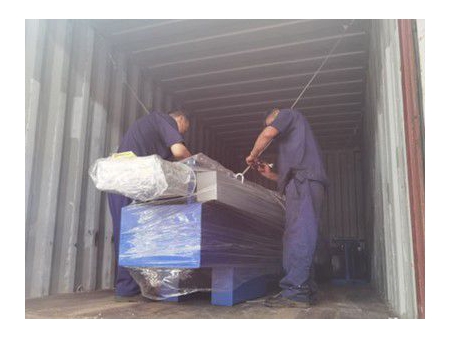

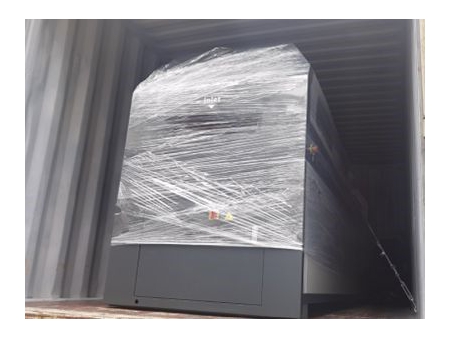

Transportation Package
