- Product Standard: Q/EFR/J 1.1-2023
- Certifications: CE certificate, Chinese technical letters patent
- Size: 1780*260*160 mm
- Rated Power: 260 W
- Peak Power: 300 W

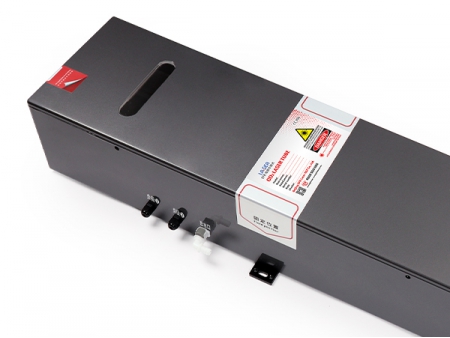

X300-Ⅰ Enhanced Laser Tube
Request a Quote
Parameters
| Model | Size | Output Power | Peak Power | Warranty Period | Catalyst |
| X300-Ⅰ | 1780*260*160mm | 260W | 300W | 360 days | yes |
Features
- PVC shell offers multiple features of high-pressure resistance, aging resistance, flame retardancy, high strength, robust structure, good formability and exceptional adaptability to various industrial applications.
- Sight glass is available for monitoring working status, ensuring maintenance-free, convenient and efficient operation.
- High-voltage connector ensures quick connection, exclusive resistance to high voltage, and easy to use.
Operating Condition
- Cooling method: Water cooling
- Cooling liquid: clean water
- Flow rate: 3-5L/min
- Standard water temperature: 10℃-40℃
- Ambient temperature: 2℃ -40℃
- Ambient humidity: 10-60%
Package Size
| Model | Packing | Dimensions (L*W*H)(cm) | Net Weight (kg) | Gross Weight (kg) |
| X300-1 | Single Packing | 191*32*34 | 16 | 19 |
Applications
- Thin metal cutting

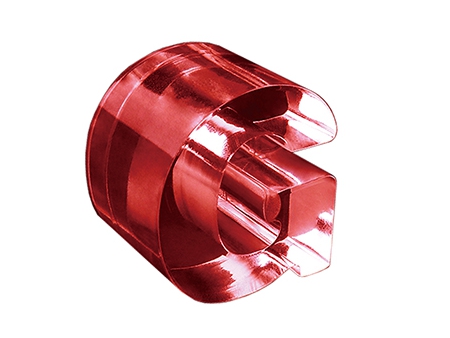

- Acrylic cutting and engraving

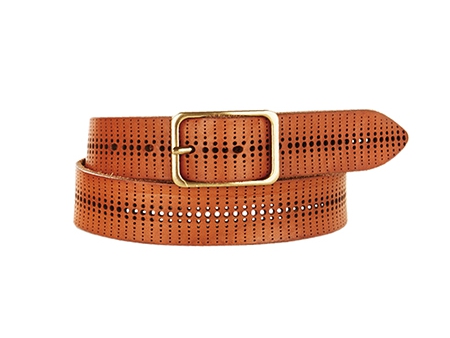

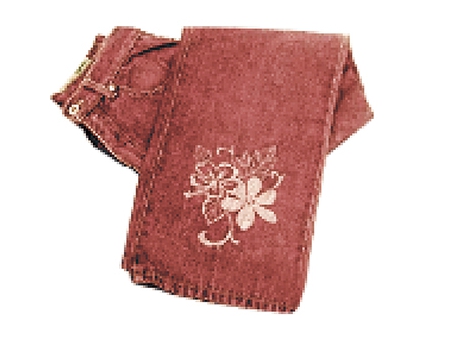

- Laser engraving

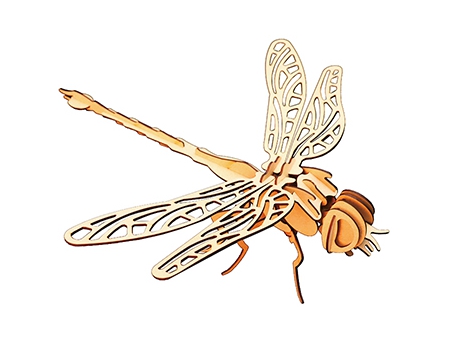

- Die board cutting
