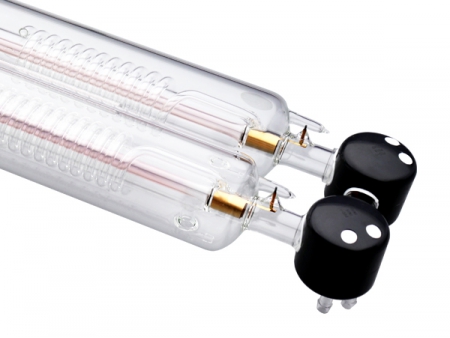

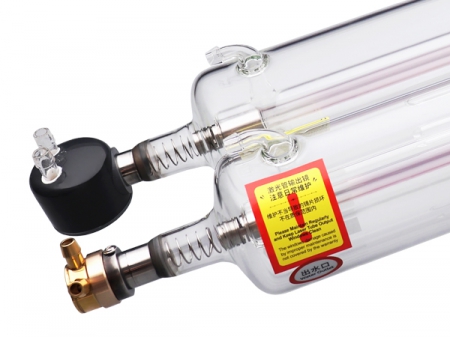

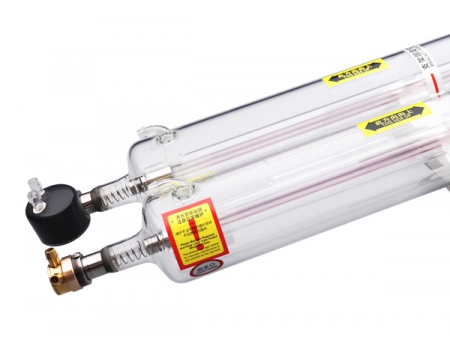

X300 Series CO 2 Laser Tube Manufacturer

X300 Series CO 2 Laser Tube

Request a Quote

View All: http://efrlaser.com/10-x260-series-co2-laser-tube.html

Parameters

Model	Size	Output Power	Peak Power	Warranty Period	Catalyst
X300	1740200116mm	260W	300W	360 days	yes

Features

Single-tube and double-tube output can be freely switched, and the output power can be adjusted within the range of 50W to 260W.
A dedicated power supply is configured and the actual output power is adjustable (dedicated power supply and conventional power supply are used together).
The optimal structure design of U-shaped resonator makes the beam more focused and efficient, resulting in a stable output of high power efficiency.
II-VI total reflector and output mirror coupled with independently developed laser lens water cooling system not only provide highly efficient and stable output power but also ensure less power fluctuation, significantly improving the cutting speed and cutting thickness for both metallic and non-metallic materials.
Strict quality control is guaranteed by using imported power meter and spot analyzer, enabling each laser tube to be featured by high power and excellent spot quality, therefore achieving quasi-TEM00 fundamental mode.
