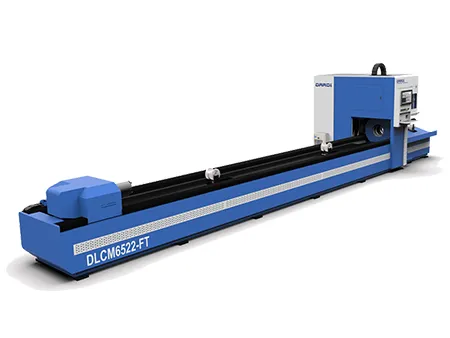

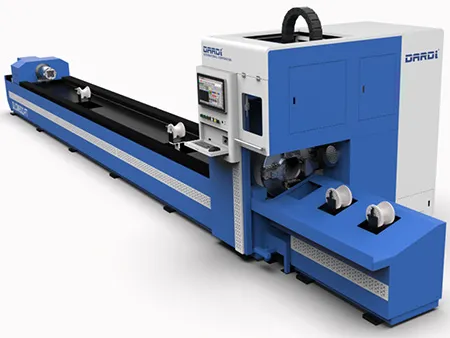

Fiber Laser Tube Cutting Machine, FT Series
Request a Quote

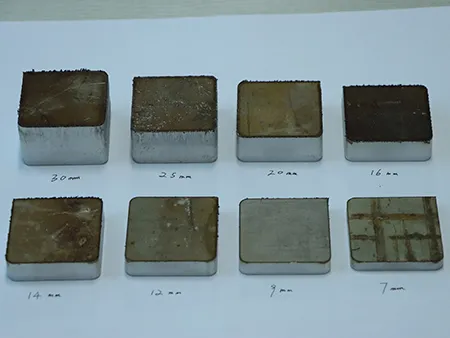

Applicable Materials
Our fiber laser machines excel in cutting tubes of varying thicknesses, making them indispensable in a wide array of industries. From manufacturing components for fitness equipment and oil pipelines to precision cutting for construction and agricultural machinery, these machines deliver reliable performance. They are also widely used in automotive manufacturing and even in home decoration projects, offering versatility and precision for diverse applications.
Features
- Features a self-centering pneumatic chuck designed to protect thin wall tubes, ensuring secure clamping without compromising the surface integrity or causing deformation.
- Experience enhanced productivity with powerful dynamic performance, allowing for faster and more efficient cutting operations.
- Versatility is at the core, with the ability to handle various tube types, from round and rectangular to special shapes like I-beams and channel steel, delivering high-speed, precise cuts every time.
- To optimize the workflow, the laser cutter can be equipped with an automatic loading and unloading system, cutting down on labor costs while increasing overall efficiency.
Main Parameters
- Laser power: 1kW-4kW
- Operating voltage: 380V/50Hz, 380V/60Hz, 220V/50Hz, 220V/60Hz
- Machine power: 9kW
- Max. acceleration: 0.8G
- Operating temperature: 0℃~40℃
- Operating humidity: <90% Non-condensing
Detailed Parameters of Available Models
| Model | | |
| Max. tube length (mm) | 6000 | 6000 |
| Round tube cutting diameter (mm) | ⌀20-220 | ⌀20-350 |
| Rectangular tube edge length (mm) | 20-140 | 20-250 |
| X-axis travel (mm) | 200 | 200 |
| Y-axis travel (mm) | 6000 | 6000 |
| Z-axis travel (mm) | 350 | 350 |
| XY/U axis maximum speed (m/min) | 90 | 90 |
| A/B/C max. rotation speed (rpm) | 90 | 90 |
| X/y-axis positioning accuracy | ±0.03 | ±0.03 |
| X/y-axis repositioning accuracy | ±0.03 | ±0.03 |
| Tube loading range (mm) | 1000-6000 | 1000-6000 |
| Cut size (mm) | ≤2000 | ≤2000 |
