Aluminum Foil Corrugated Conduit

Request a Quote

Website: http://sleeving-product.com/14-1-aluminum-foil-corrugated-conduit.html

• Material: Aluminum and fiberglass yarn
• Working Temperature: –50°C~ 200°C
• Color: Silver
• Approval: RoHS
• Cutting Tool: Scissor

Now

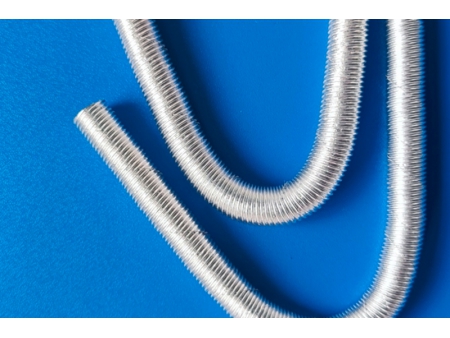

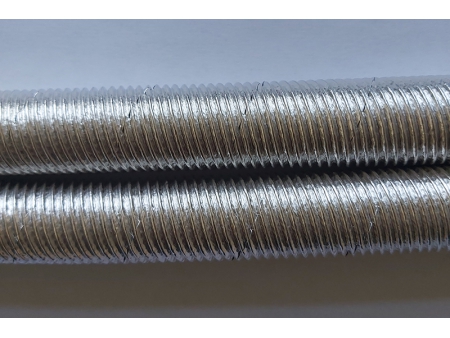

Aluminum foil corrugated conduit is constructed of 3 layers, the middle layer is made of fiberglass yarn braiding, the inside and outside layer are both covered by aluminum foil. The special design provides excellent long-term heat protection for the rubber hose, wire harness and cables used in the high temperature area of engine room and ERG system.

Application

This product provides heat reflection and heat resistance protection for a wide range of industries and applications, including automotive, railway, engines and transformers.

Optional specification

Part No.	I.D. mm	O.D. mm	Packing
BAF-009	9±0.3	12±0.5mm	1m/pcs
BAF-012	12±0.3	15±0.5mm	1m/pcs
BAF-014	14±0.3	17±0.55	1m/pcs
BAF-016	16±0.5mm	19.0±0.5mm	1m/pcs
BAF-020	20±0.5mm	23.3±0.5mm	1m/pcs
BAF-024	24±0.5mm	27.2±0.5mm	1m/pcs
BAF-026	26±0.5mm	29.5±0.5mm	1m/pcs
BAF-029	29±0.5mm	32.3±0.5mm	1m/pcs
BAF-032	32±0.5mm	36.0±0.5mm	1m/pcs
BAF-034	34±0.5mm	37.3±0.5mm	1m/pcs
