Aluminum Foil Fiberglass Wrap
Request a Quote
RW1460
- Material: Aluminum foil fiberglass PET
- Operating Temperature: -40°C to 200°C
- Thermal Insulation Performance: Tested and in compliance with SAE J2302
- Oil Resistance: No delamination or degradation (GMW15608-2016)
- High-Temperature Aging: 72 hours at 250°C (no delamination)
- Low-Temperature Flexibility: -40°C for 24 hours (no cracking)
- Cutting Method: Cold cutting
- Packaging: Plastic bag
Now

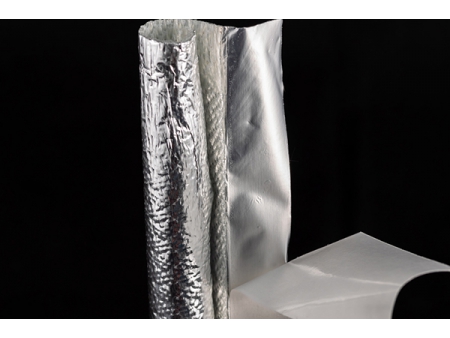

RW1460 series is an aluminum foil fiberglass wrap constructed from aluminum foil, fiberglass, and PET materials. It is designed to provide reliable thermal insulation and mechanical protection for wires, hoses, and cables exposed to radiant heat. The self-adhesive open-wrap structure allows for quick installation and secure closure.
Applications

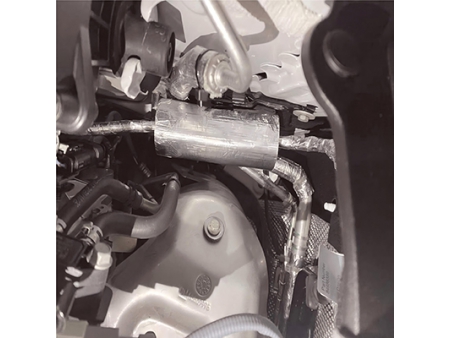

This wrap is widely used for the thermal protection of wire harnesses, cables, and hoses in high-temperature, high-pressure environments, particularly near exhaust systems or other heat sources.
Certifications
Parameters
| Model | Diameter (mm) | Thickness (mm) | Cut Length (m/pcs) | Item Code |
|---|---|---|---|---|
| 6 | 0.6±0.1 | Customized | OAF-006 | |
| 8 | 0.6±0.1 | Customized | OAF-008 | |
| 10 | 0.6±0.1 | Customized | OAF-010 | |
| 13 | 0.6±0.1 | Customized | OAF-013 | |
| 16 | 0.6±0.1 | Customized | OAF-016 | |
| 19 | 0.6±0.1 | Customized | OAF-019 | |
| 22 | 0.6±0.1 | Customized | OAF-022 | |
| 25 | 0.6±0.1 | Customized | OAF-025 | |
| 32 | 0.6±0.1 | Customized | OAF-032 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
