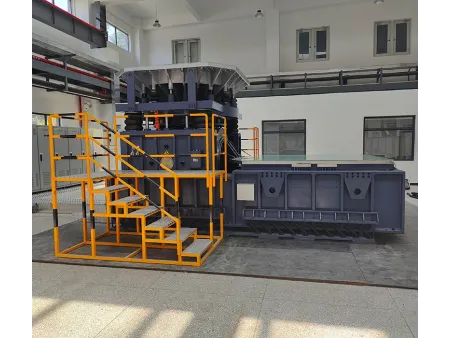

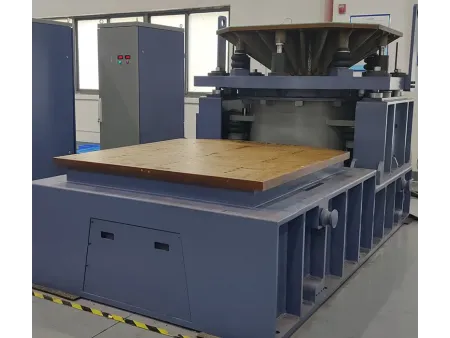

Vibration testing table system for horizontal vibration testing

Medium-Pressure Series (T-type Guide Rail)

Offers robust dynamic response and excellent resistance to tipping forces, supporting consistent and smooth operation during horizontal vibration testing.
Compatible with most vibration shakers equipped with medium-pressure T-slot guide mechanisms, typically configured with one or two integrated slip plates.
Constructed from high-strength aluminum alloy, precision machined to enhance surface durability and maintain stable sliding performance over time.

High-Pressure Series (Hydrostatic Bearings)

Designed to handle high overturning moments, making it ideal for testing heavy or oversized test articles where stability under load is critical.
Equipped with hydrostatic bearings engineered using advanced manufacturing processes to maximize load capacity, improve wear resistance, and ensure reliable performance under demanding vibration conditions.

Technical Parameters

Medium/High Pressure Slip Table
Thickness (mm)	Frequency (Hz)	TS25WLS3-340 TS30-370 TS35WLS3-340 TS40-370		TS30LS4-445 TS40LS4-445 TS50-445 TS50W-445 TS60-445 TS60W-445 TS70W-445 TS80W-445		TS50LS3-445 TS50LS4-445 TS50WLS3-445 TS50WLS4-445 TS60LS3-445 TS60LS4-445 TS60WLS3-445 TS60WLS4-445 TS70WLS3-445 TS70WLS4-445 TS80WLS3-445 TS80WLS4-445		TS65LS3-480		TS70LS3-550 TS100-550 TS100LS3-550 TS120-550 TS120LS3-550		TS160-650 TS160LS3-650 TS180-650 TS180LS3-650 TS200-650 TS200LS3-650		TS300LS3-870 TS350LS3-870 TS400LS3-870
Effective Mass (Al/kg)	Effective Mass (Mg/kg)
Model	Dimension
MP0808/HP0808	800×800	50	2000	50	2000	50	2000	50	2000	50	2000	——		——
MP0808/HP0808	800×800	108	75	112	80	120	86	118	86	141	105	——		——
MP0909/HP0909	900×900	50	2000	50	2000	50	2000	50	2000	50	2000	——		——
MP0909/HP0909	900×900	132	92	138	96	146	103	142	101	167	122	——		——
MP1010/HP1010	1000×1000	50	2000	50	2000	50	2000	50	2000	50	2000	——		——
MP1010/HP1010	1000×1000	160	110	165	115	173	122	169	120	195	142	——		——
MP1111/HP1111	1100×1100	50	2000	50	2000	50	2000	50	2000	50	2000	——		——
MP1111/HP1111	1100×1100	188	129	193	135	203	142	198	140	226	162	——		——
MP1212/HP1212	1200×1200	50	2000	50	2000	50	2000	50	2000	50	2000	50	2000	——
MP1212/HP1212	1200×1200	221	151	226	156	236	165	231	161	260	182	282	206	——
MP1313/HP1313	1300×1300	50	2000	50	2000	50	2000	50	2000	50	2000	50	2000	——
MP1313/HP1313	1300×1300	256	175	262	180	272	188	266	185	296	210	318	232	——
MP1414/HP1414	1400×1400	50	1600	50	1600	50	1600	50	1600	50	1600	50	2000	——
MP1414/HP1414	1400×1400	295	199	300	205	310	213	305	210	336	235	358	258	——
MP1515/HP1515	1500×1500	50	1200	50	1200	50	1200	50	1200	50	1200	50	2000	55	1500
MP1515/HP1515	1500×1500	335	226	340	231	351	241	345	236	378	263	400	285	600	485
MP2020/HP2020	2000×2000	——		——		——		——		60	1000	60	2000	60	1500
MP2020/HP2020	2000×2000	——		——		——		——		778	530	800	552	950	702
MP2525/HP2525	2500×2500	——		——		——		——		——		——		60	1500
MP2525/HP2525	2500×2500	——		——		——		——		——		——		1380	1040
