STPHT Series Ultra-High Temperature Test Chamber

Request a Quote

Website: http://testchamber-en.com/1-2-ultra-high-temperature-test-chamber.html

Environmental test chamber with temperature control up to 500℃ for testing applications under high temperatures

Designed to handle rigorous thermal testing, this horizontal chamber supports applications requiring stable conditions up to 500 °C. The interior structure uses reinforced materials that maintain integrity during extended high-temperature cycles.

A horizontal airflow system distributes heat evenly across the workspace, helping ensure consistent results when multiple samples are placed inside.

Features

Uniform temperature distribution, ideal for testing several components at once
Maximum working temperature reaching 500 °C

Standard Configuration

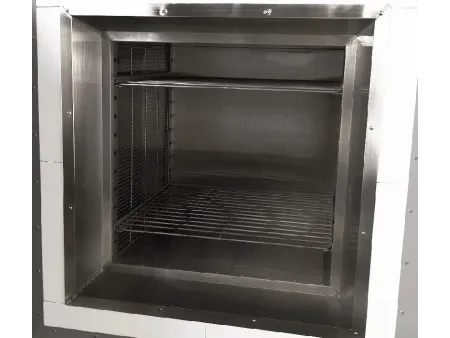

2 sets of specimen racks
1 vent port
1 terminal block for controlling specimen power supply

Technical Parameters

Model		STPHT
Model		101	201	301
Chamber volume (L)		91	216	512
Temperature range		(Ambient temperature 20)℃～ 500℃
Temperature fluctuation	≤100℃	1℃
	≤200℃
	≤300℃
	≤400℃
	≤500℃
Temperature deviation	≤100℃	±2.0℃		±1.5℃
	≤200℃	±2.0℃		±2.0℃
	≤300℃	±3.0℃
	≤400℃	±5.0℃
	≤500℃	±6.0℃
Temperature rise rate		≤90min		≤100min
Internal dimensions (mm)	W	450	600	800
	H	450	600	800
	D	450	600	800
External dimensions (without protrusion) (mm)	W	1190	1340	1650
	H	1110	1260	1500
	D	810	960	1225
Power supply		380V (three phase four wire protective grounding wire)

Performance measured at 25 °C ambient temperature, with the chamber empty and no air exchange during operation.
